Starter Interlock Switch Removal/Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Disconnect the starter interlock switch connector.
Remove the starter interlock using the following procedure:
1. Detach hook A in the direction of the arrow shown in the figure.

  Fig 1: Removing Starter Interlock Switch Connector Hook
2. Slide the starter interlock switch in the direction of the arrow shown in the figure.

  Fig 2: Sliding Starter Interlock Switch
3. Remove the starter interlock switch from the clutch pedal.
Install the starter interlock using the following procedure:

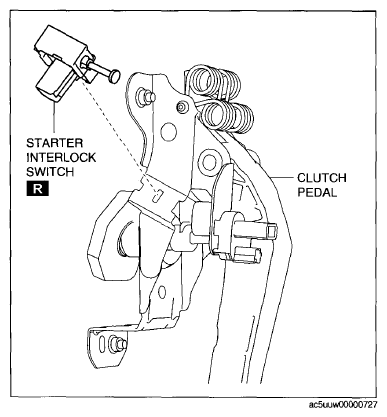

Fig 3: Identifying Starter Interlock Switch And Clutch Pedal
1. Insert hook B of the starter interlock switch into the clutch pedal hole.

  Fig 4: Identifying Starter Interlock Switch, Hook, Clutch Pedal And Hole
2. While pressing the starter interlock switch against the clutch pedal, slide the starter interlock switch until hook A is locked in the direction of the arrow shown in the figure.

  Fig 5: Sliding Starter Interlock Switch
Fully depress the clutch pedal in the direction of arrow, and verify that a click sound from the starter interlock switch is heard.
Install in the reverse order of removal.
Fully depress the clutch pedal, and verify that the engine starts. starter

Fig 6: Depressing Clutch Pedal
