Pilot Bearing Installation Note
WARNING: This page is about a different variant/trim than selected.
- Install new pilot bearing to the specified position using the following tools.
Tool
Snap-on brand millimeter size bushing driver set (A160M) adapter A160M7 (20-22 mm)
- Use the adapter with the 20 mm side of the A160M7 (20-22 mm) facing the pilot bearing side.
Substitution tool
Outer diameter: 21 mm {0.83 in}
Inner diameter: 19 mm {0.75 in}
Standard position

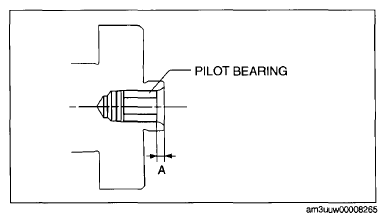

Distance A of pilot bearing from crankshaft end: 1.5-2.5 mm {0.060-0.098 in}
