Water Pump Pulley Removal Note

CAUTION:
  • Be careful not to damage the belt groove and surface of the water pump pulley when using tools, otherwise it will cause wear, breakage, abnormal noise of the drive belt (stretch belt), damage to the pulley, and rust.
  1. Align the water pump pulley hole with the water pump hole as shown in the figure.
    Fig 1: Identifying Water Pump, Pulley And Holes
    G08348020
  2. Insert an appropriate bolt (length approx. 70 mm {2.8 in}  ) into the water pump hole as shown in the figure, and lock the water pump pulley against rotation.
  3. Remove the water pump pulley.
  4. Remove the bolt used for locking the water pump pulley against rotation.

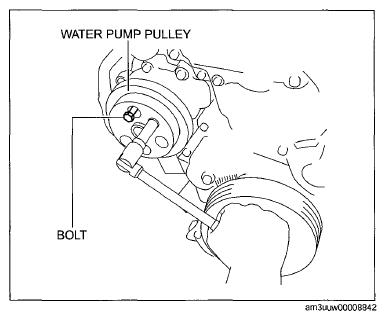

    Fig 2: Inserting Bolt Into Water Pump Hole Using Tool
    G08348021
