Rear Oil Seal Replacement: Notes

  1. Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION ). (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6A-EL] (ATX, 2WD) ). (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL] (ATX, AWD) ).
  2. Remove the flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION ). (See DRIVE PLATE REMOVAL/INSTALLATION ).
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

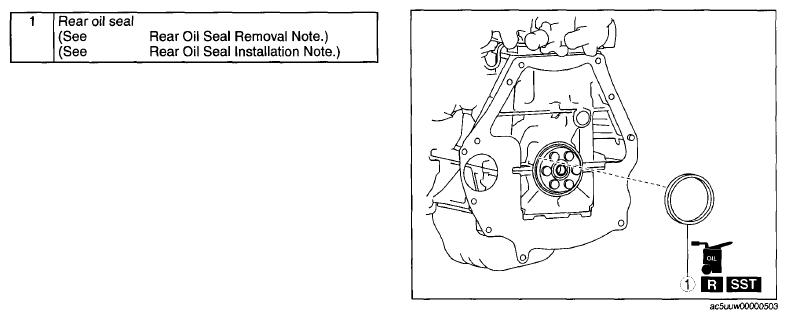

    Fig 1: Identifying Rear Oil Seal
    G09074262
