Exhaust system insulator removal/installation: Notes

  1. Remove the exhaust system insulator in the order shown in the figure.
  2. Install in the reverse order of removal.

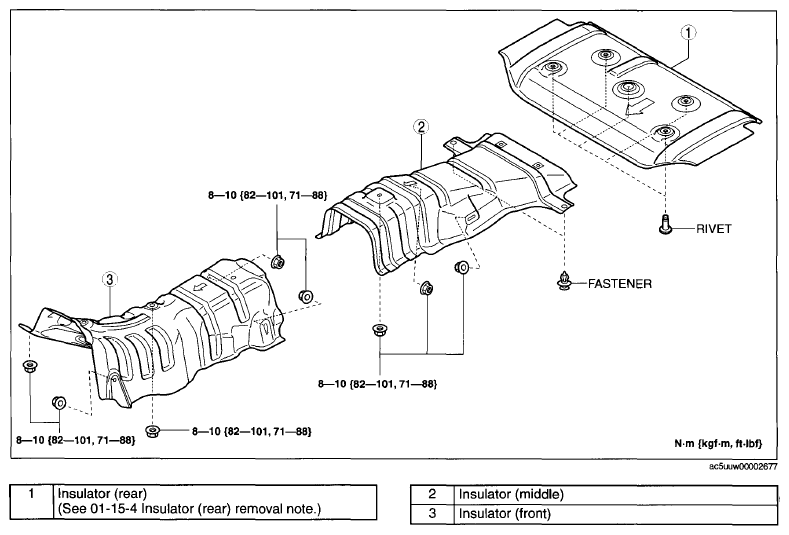

    Fig 1: Exhaust System Insulator (Rear, Middle And Front) With Torque Specifications
    G09074415
