CX-5 Touring, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring System
>>
Transmission/Transaxle
>>
Automatic Transaxle
>>
Automatic Transaxle Control System
Automatic Transaxle Control System

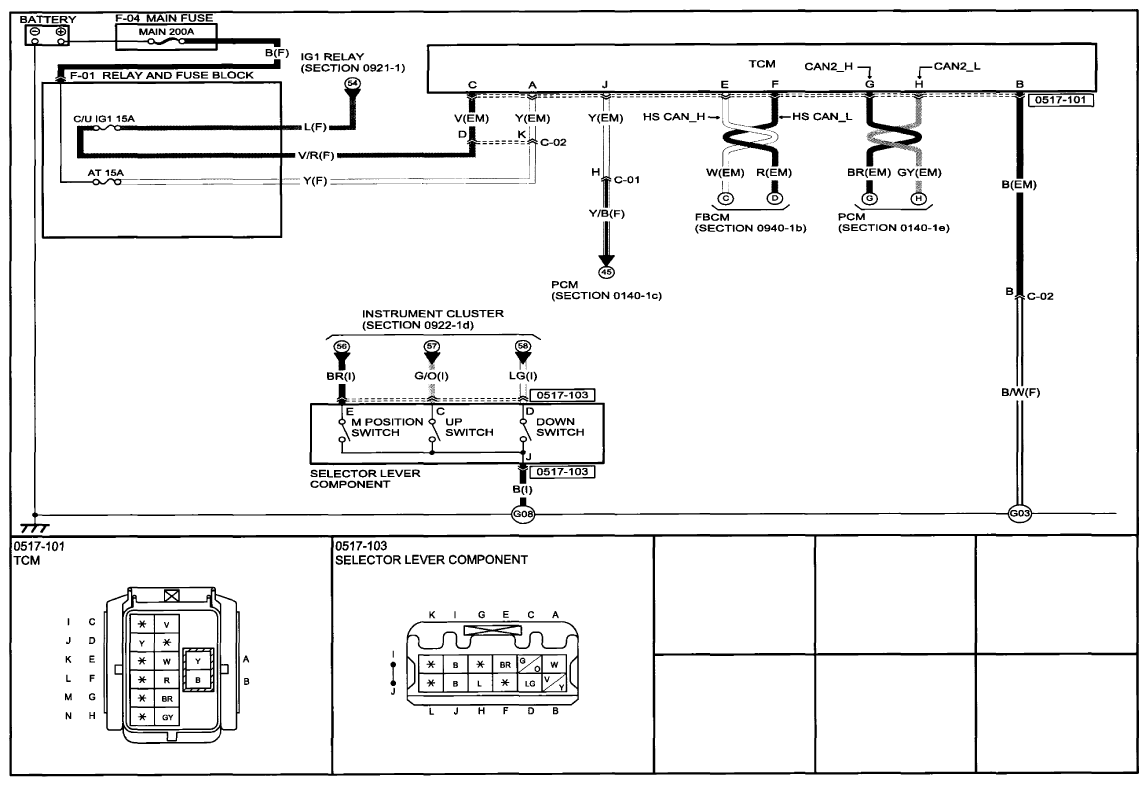

Fig 1: Automatic Transaxle Control System Wiring Diagram (0517-1) 1 Of 2

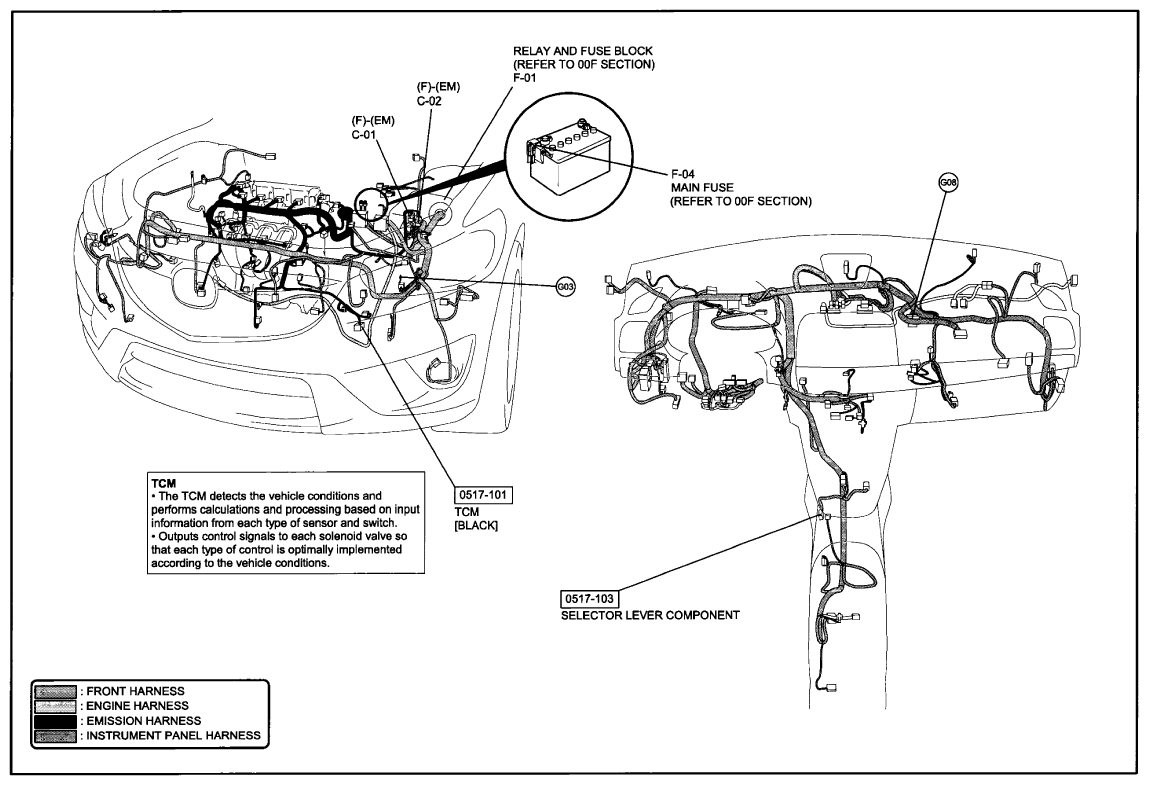

Fig 2: Automatic Transaxle Control System Wiring Harness Routing Diagram (0517-1) 2 Of 2
