Data Link Connector

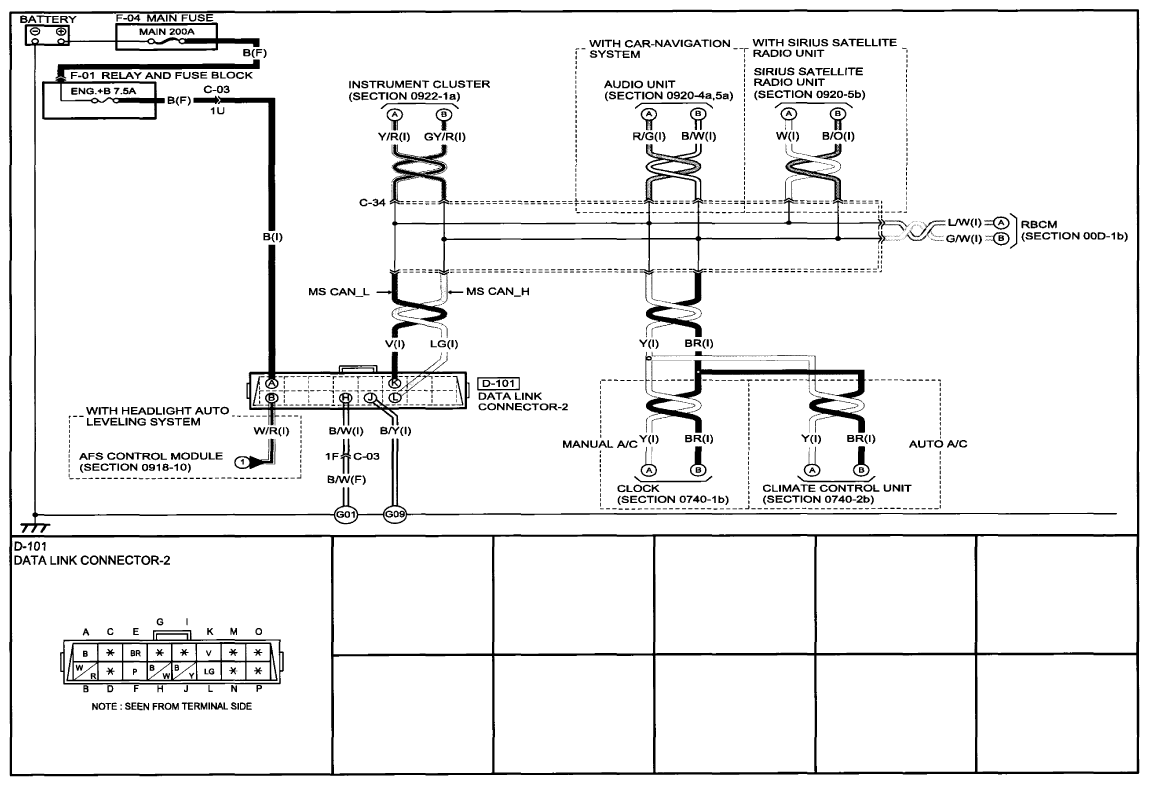

Fig 1: Data Link Connector Wiring Diagram (00D-1a) 1 Of 2
G09120207

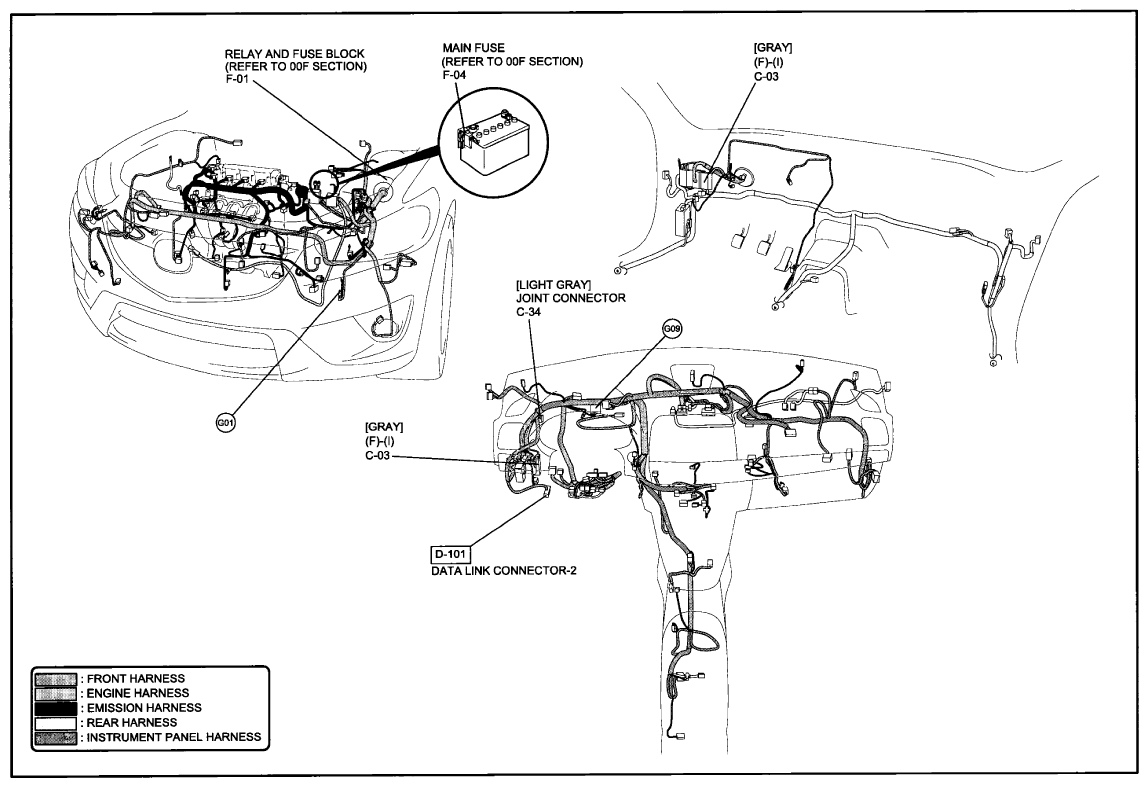

Fig 2: Data Link Connector Wiring Harness Routing Diagram (00D-1a) 2 Of 2
G09120208

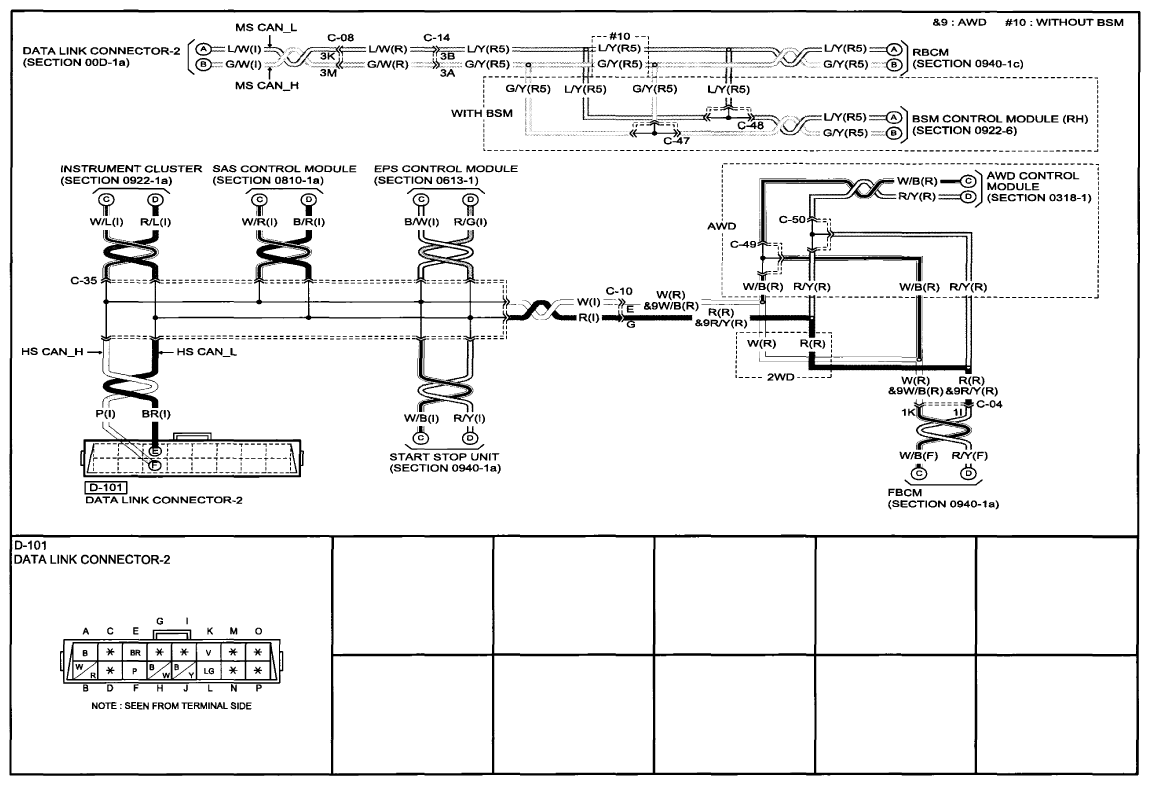

Fig 3: Data Link Connector Wiring Diagram (00D-1b) 1 Of 2
G09120209

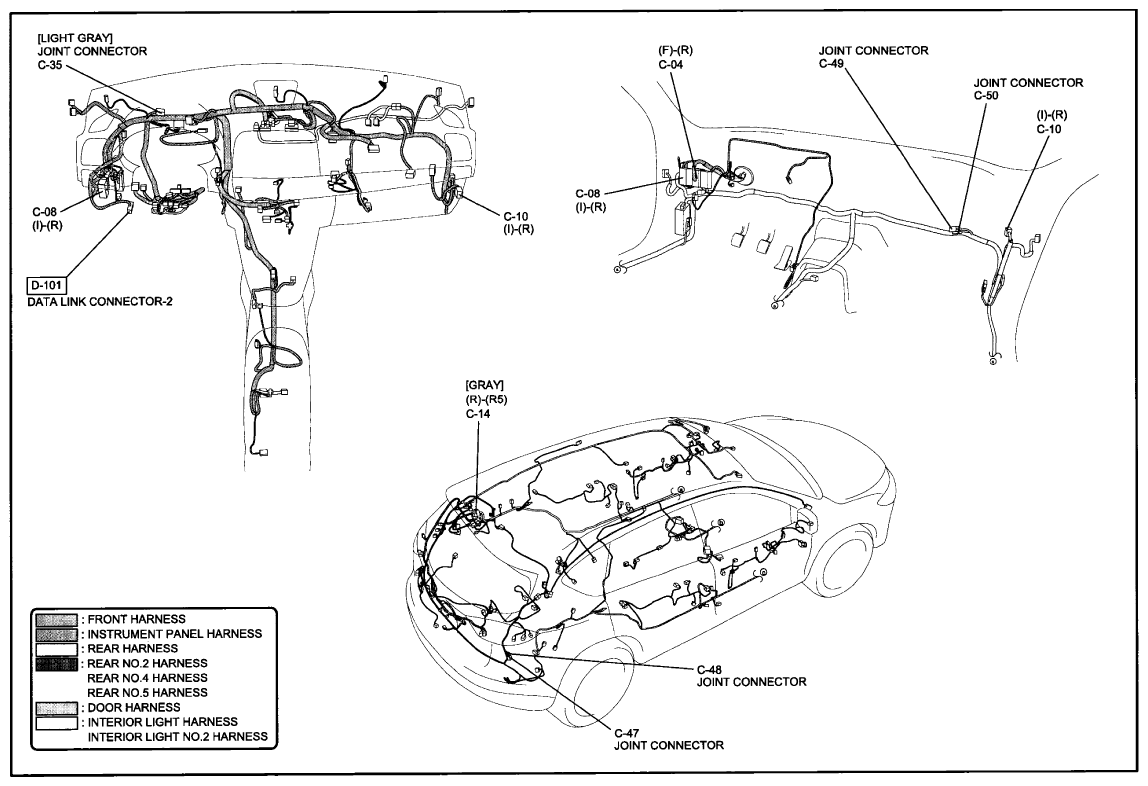

Fig 4: Data Link Connector Wiring Harness Routing Diagram (00D-1b) 2 Of 2
G09120210
