Dynamic Stability Control

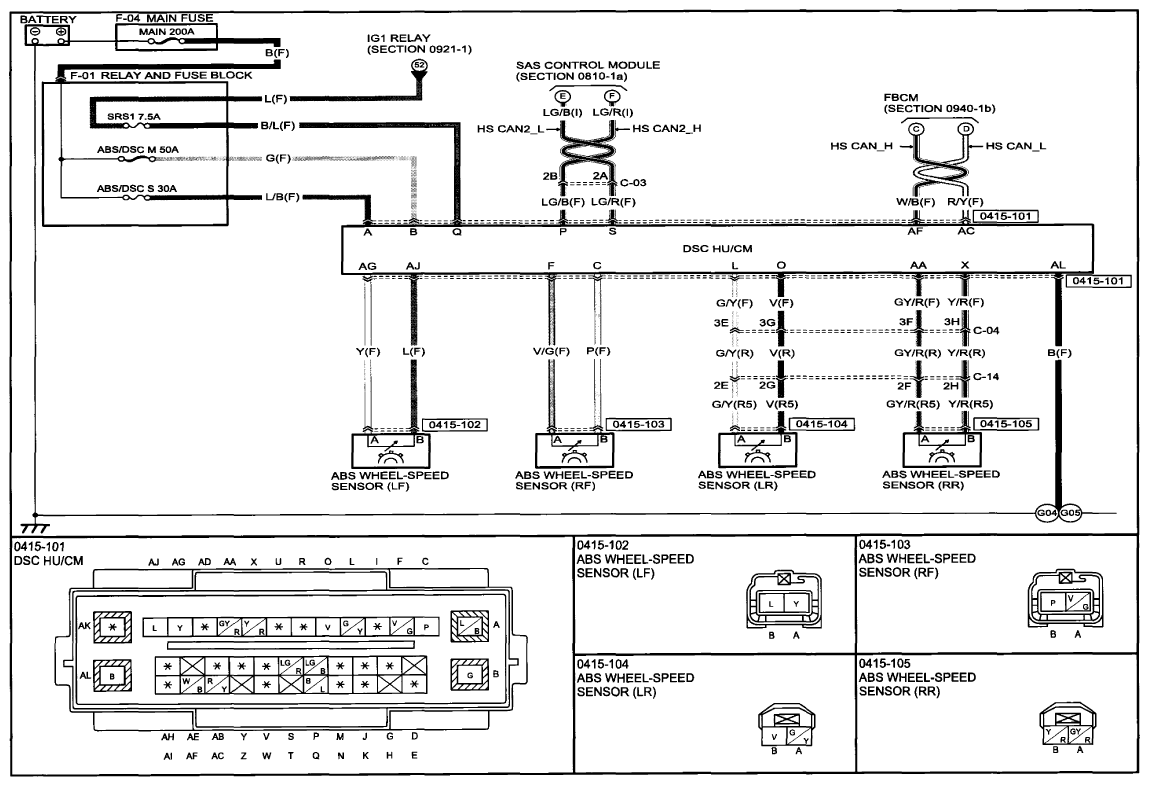

Fig 1: Dynamic Stability Control System Wiring Diagram (0415-1) 1 Of 2

G09120235

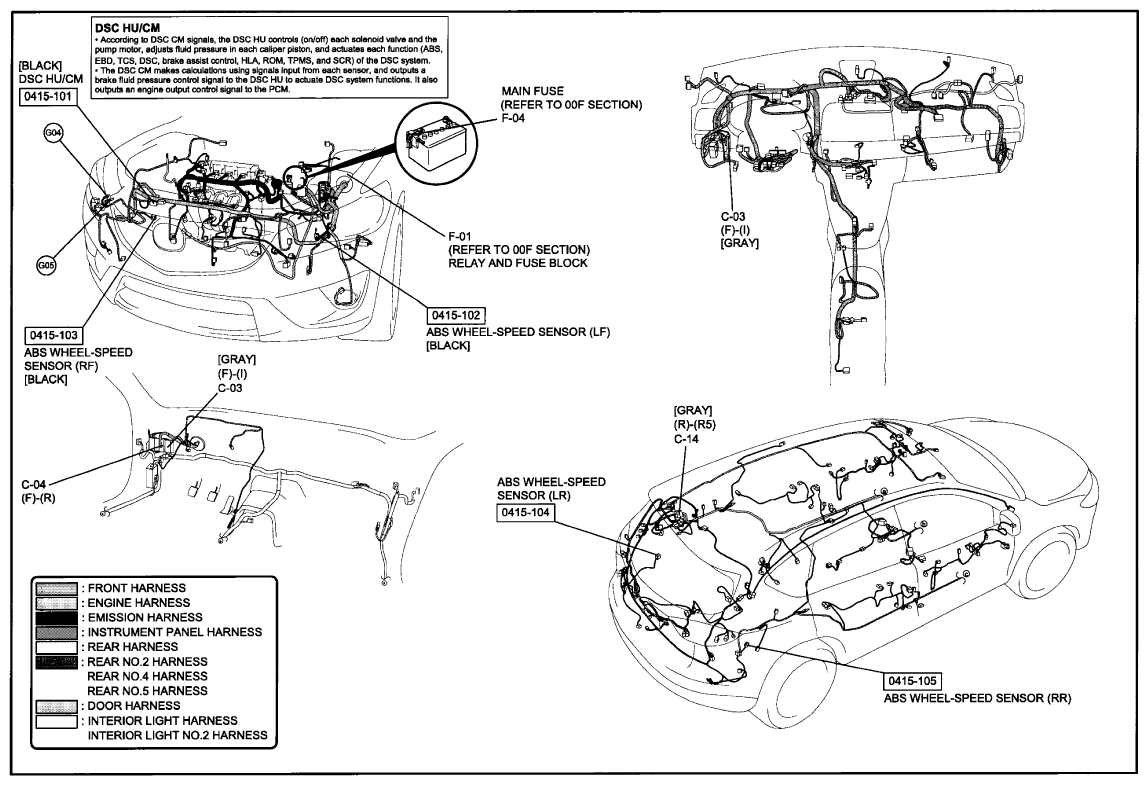

Fig 2: Dynamic Stability Control System Wiring Harness Routing Diagram (0415-1) 2 Of 2

G09120236
