OEM Wiring System
>>
Body & Accessories
>>
Control System
>>
Body Control System
Body Control System

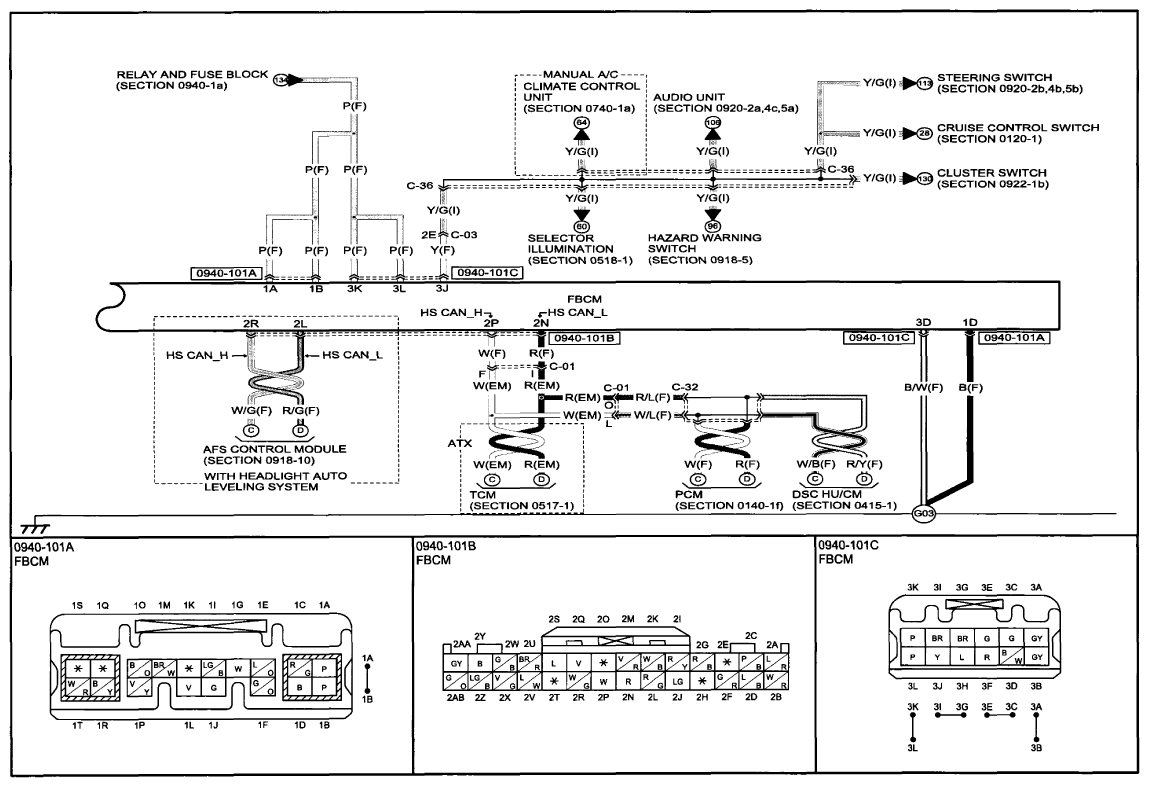

Fig 1: Body Control System Wiring Diagram (0940-1a) 1 Of 2

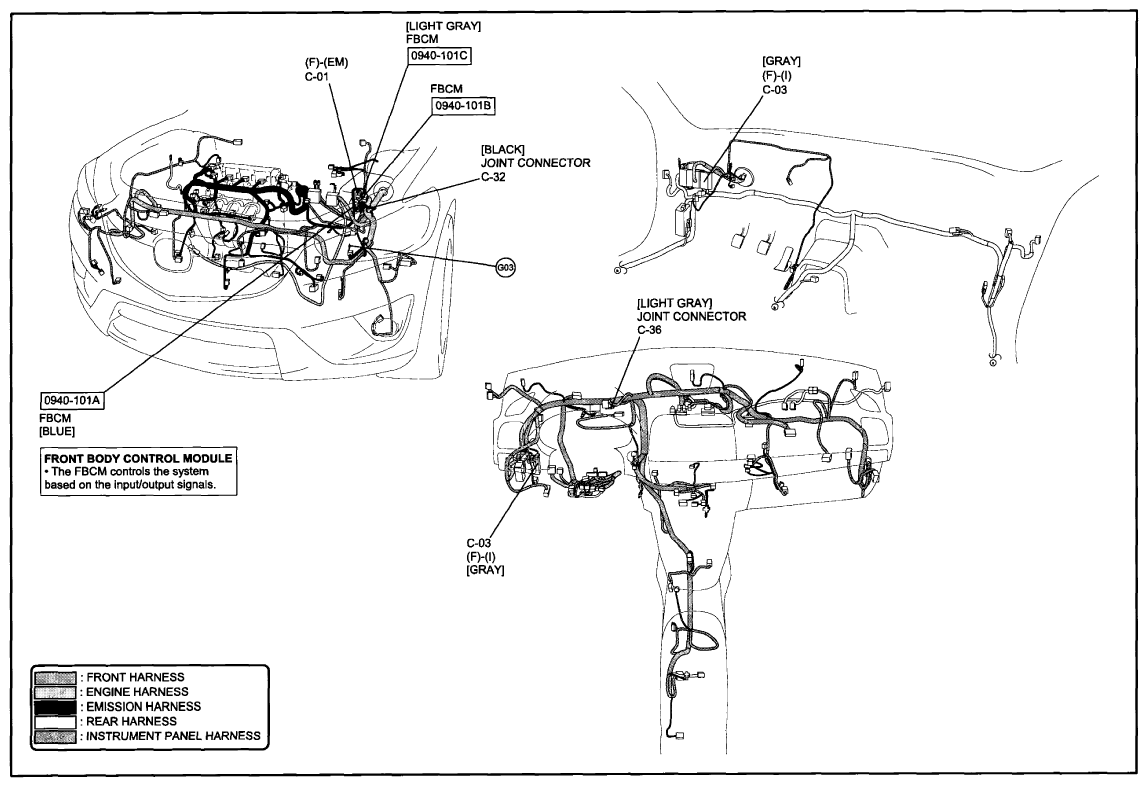

Fig 2: Body Control System Wiring Harness Routing Diagram (0940-1a) 2 Of 2

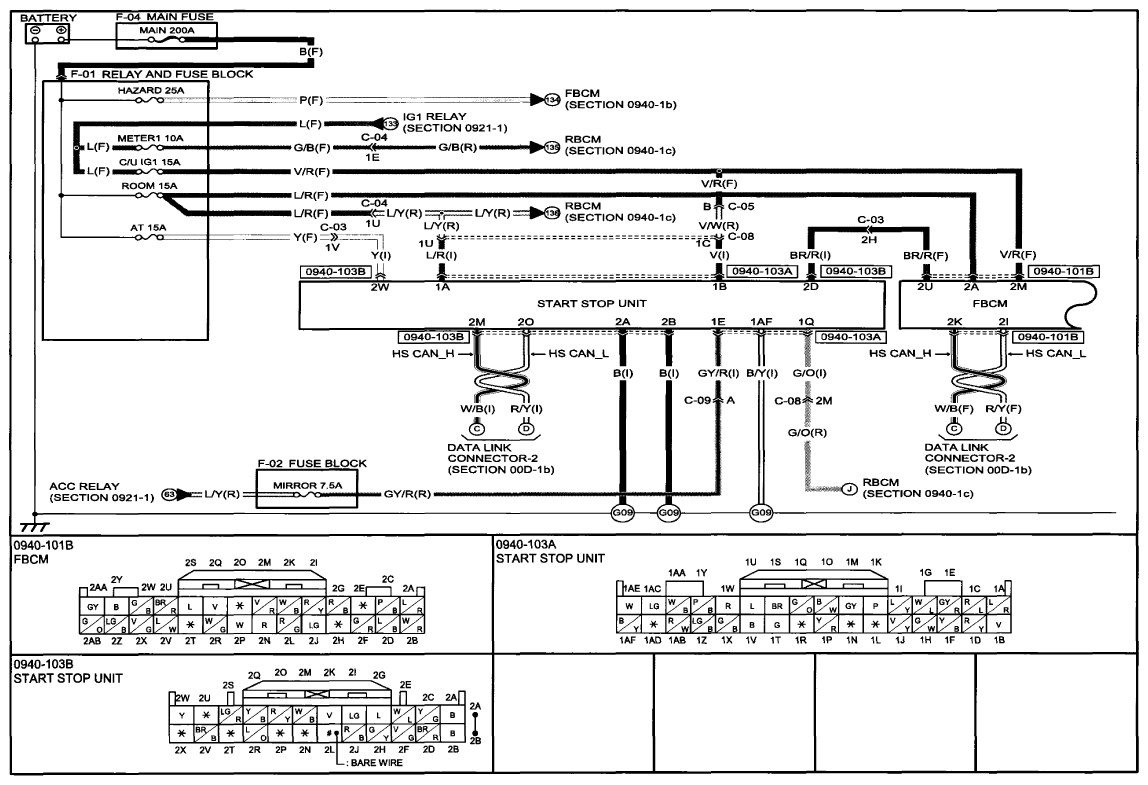

Fig 3: Body Control System Wiring Diagram (0940-1b) 1 Of 2

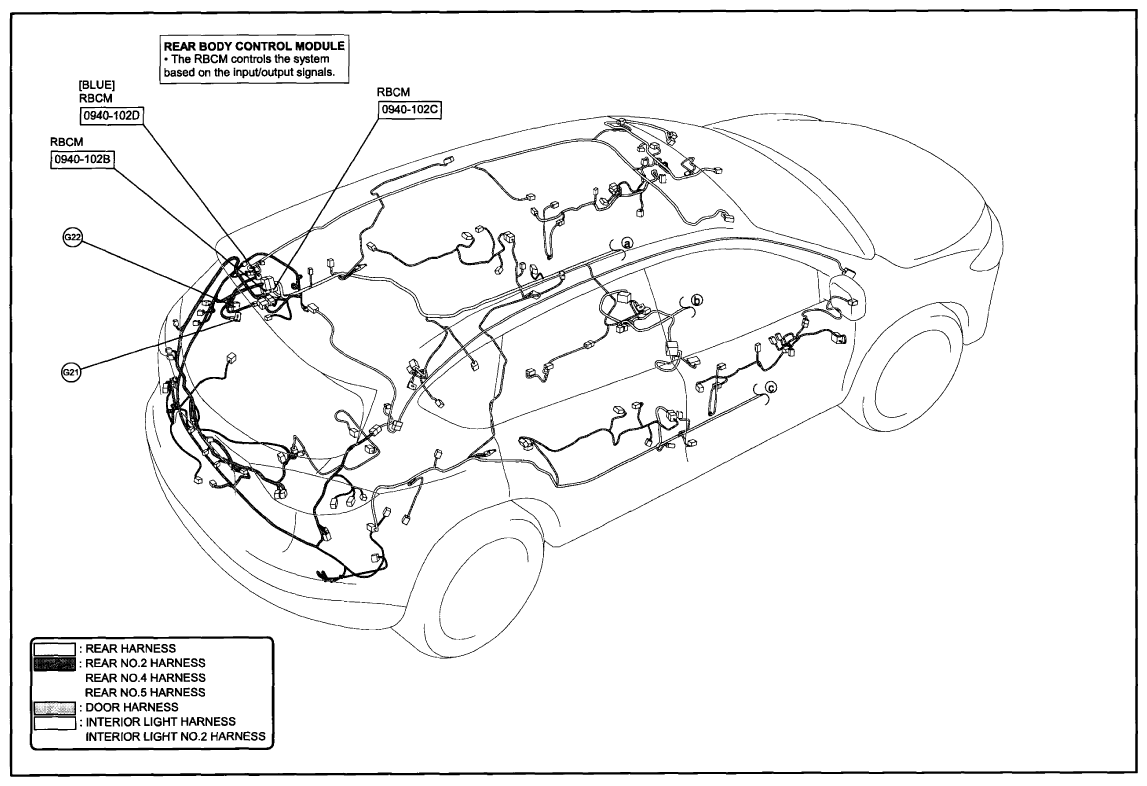

Fig 4: Body Control System Wiring Harness Routing Diagram (0940-1b) 2 Of 2

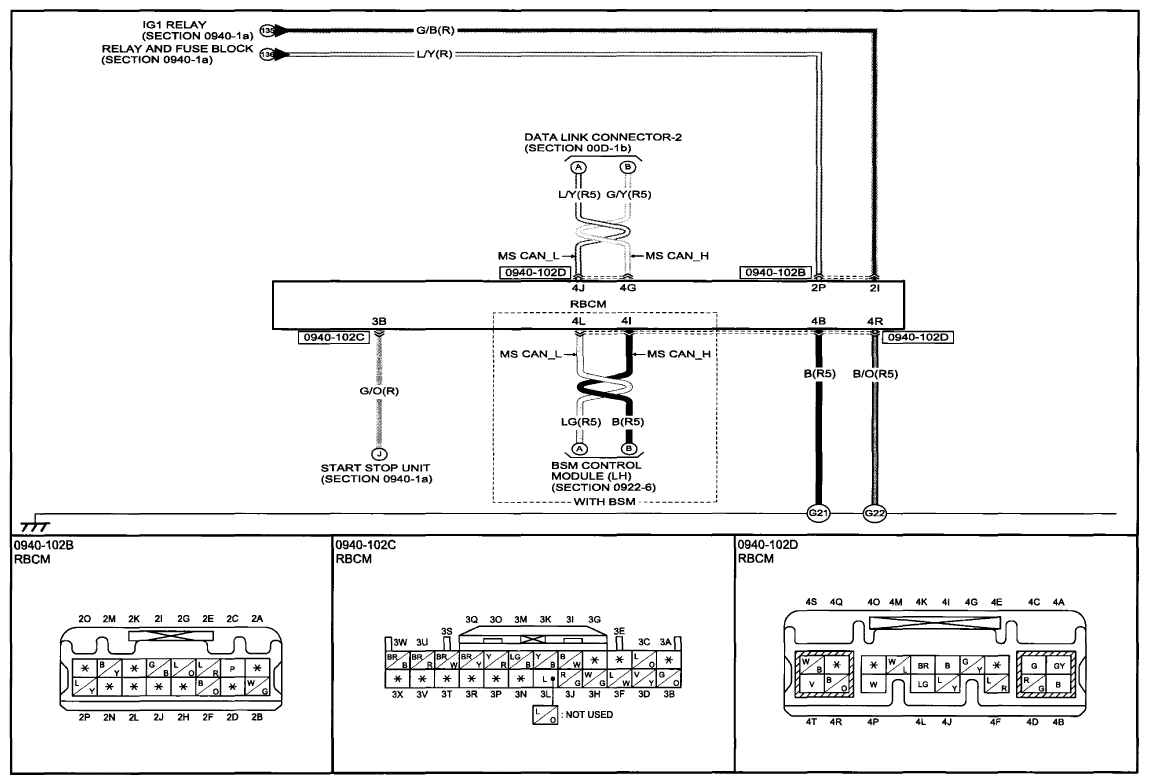

Fig 5: Body Control System Wiring Diagram (0940-1c) 1 Of 2

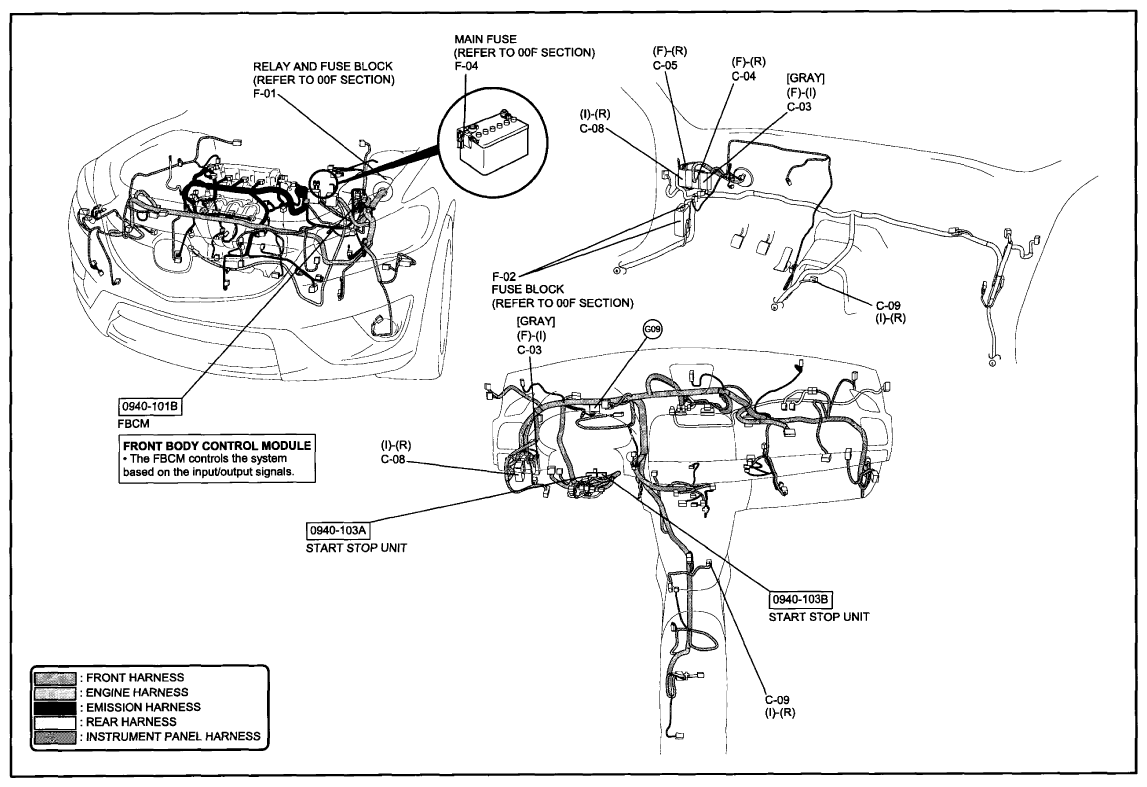

Fig 6: Body Control System Wiring Harness Routing Diagram (0940-1c) 2 Of 2
