Solar Radiation Sensor Connector End View

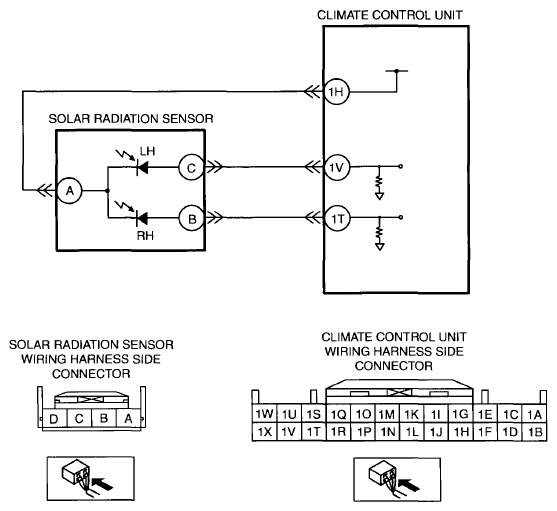

Fig 1: Solar Radiation Sensor Connector End View

G09075721

Courtesy of MAZDA MOTORS CORP.
