CX-5 Touring, AWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
On-Board Diagnostic [Dynamic Stability Control System]
>>
Dynamic Stability Control System Wiring Diagram [Dynamic Stability Control (DSC)]
Dynamic Stability Control System Wiring Diagram [Dynamic Stability Control (DSC)]

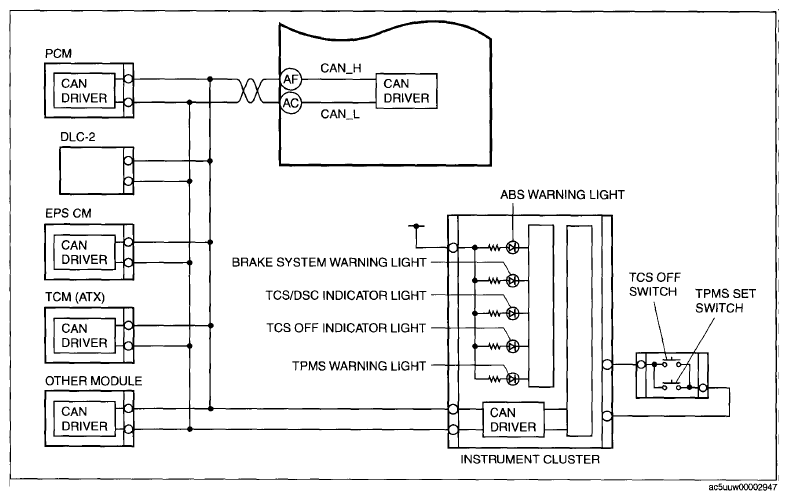

Fig 1: Dynamic Stability Control System - Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Dynamic Stability Control System - Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
