Rear Door Quarter Glass Removal/Installation: Notes

  1. Fully lower the rear door glass.
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION ).

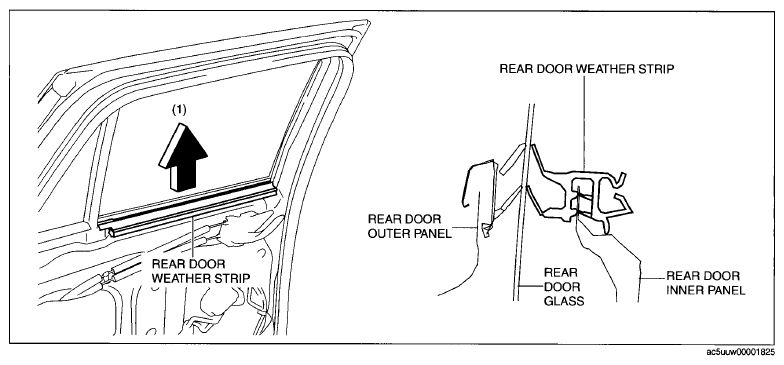

  4. Remove the rear door weather strip arrow (1) shown in the figure.
    Fig 1: Removing Rear Door Weather Strip
    G09076661

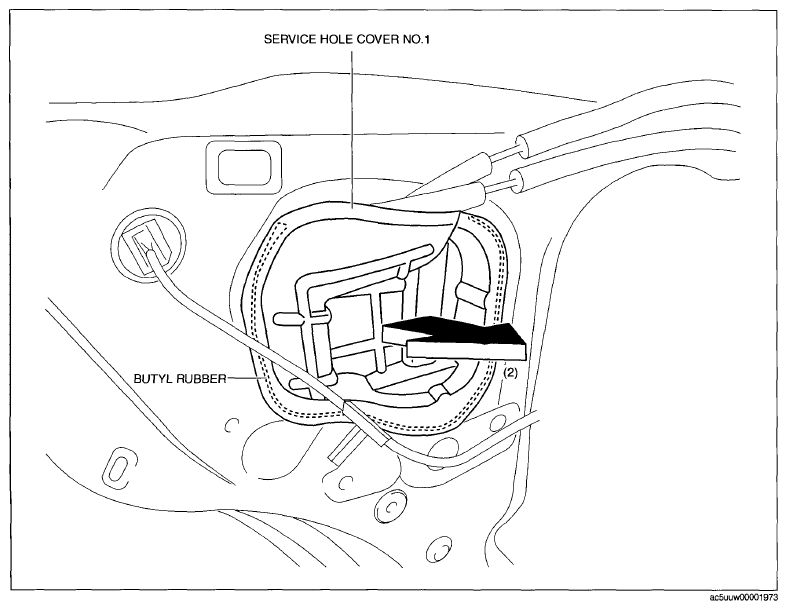

  5. Remove the service hole cover No.1 arrow (2) shown in the figure.
    CAUTION:
    • When removing service hole cover No.1, remove it while gradually stripping the butyl rubber. Otherwise service hole cover No.1 may be deformed.
    Fig 2: Removing Service Hole Cover No. 1
    G09076662

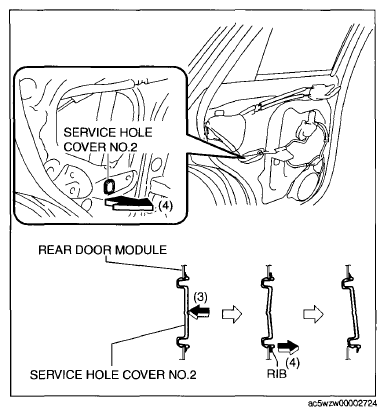

  6. Remove the service hole cover No.2 arrow in the order of (3), (4) shown in the figure.
    Fig 3: Removing Service Hole Cover No. 2
    G09076663
  7. Partially peel back rear door weather strip.

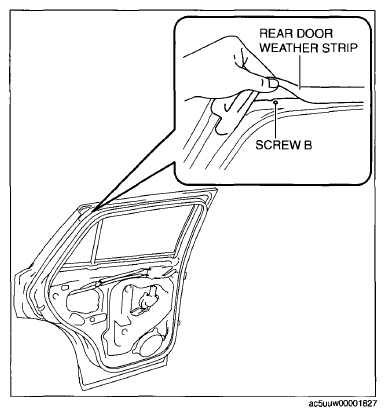

  8. Remove screw B.
    Fig 4: Removing Rear Door Weather Strip Screw B
    G09076664

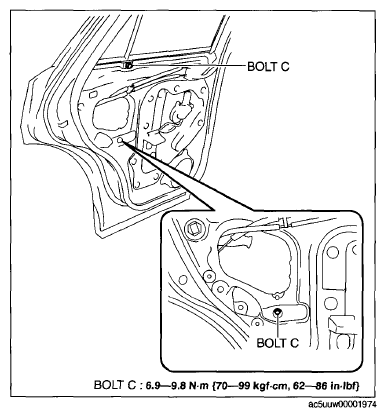

  9. Remove bolts C.
  10. Partially peel back the rear door glass run channel.
    Fig 5: Removing Rear Door Glass Run Channel Bolt C With Torque Specifications
    G09076665

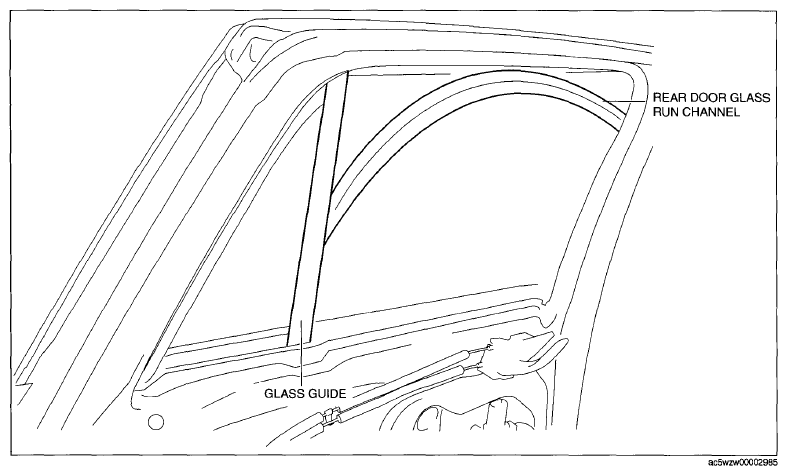

    Fig 6: Identifying Rear Door Glass Run Channel And Glass Guide
    G09076666

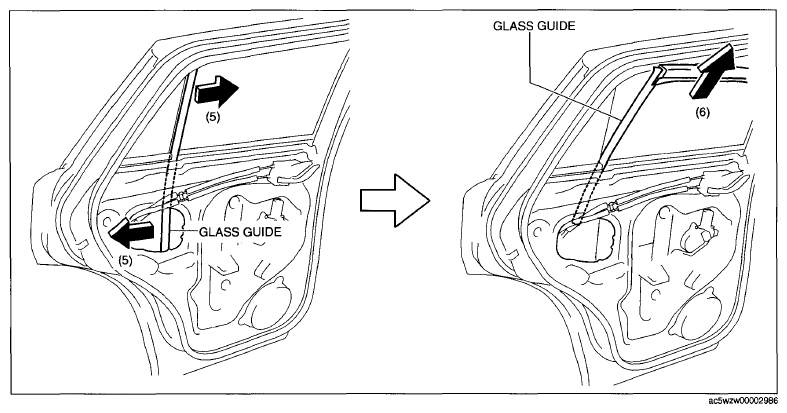

  11. Pull the glass guide in the direction of the arrow (5) shown in the figure, then remove the glass guide direction of the arrow (6) shown in the figure. (See REAR DOOR GLASS RUN CHANNEL INSTALLATION NOTE ). (See GLASS GUIDE INSTALLATION NOTE ).
    Fig 7: Removing Glass Guide
    G09076667
  12. Pull the rear door glass run channel in the direction of the arrow in the order of (7),(8),(9) then remove the rear door glass run channel.
    Fig 8: Pulling Rear Door Glass Run Channel
    G09076668

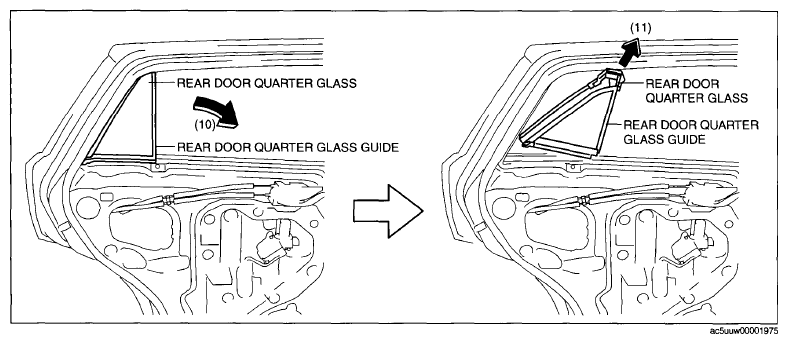

  13. Slide the rear door quarter glass and rear door quarter glass guide as a single unit in the direction of the arrow (10) shown in the figure.
    Fig 9: Sliding Rear Door Quarter Glass And Guide
    G09076669
  14. Remove the rear door quarter glass and rear door quarter glass guide as a single unit in the direction of the arrow (11) shown in the figure.

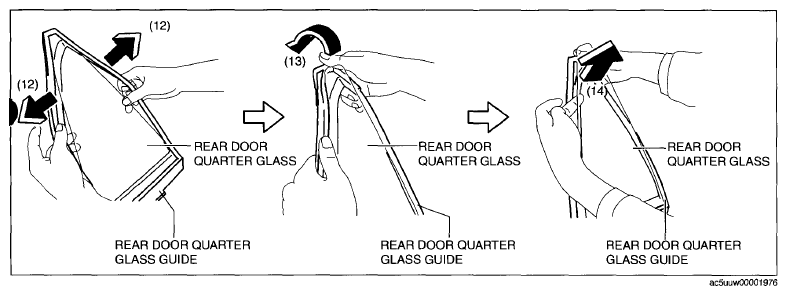

  15. Pull the rear door quarter glass guide in the direction of the arrow in the order of (12), (13), (14) and remove the rear door quarter glass.
    Fig 10: Removing Rear Door Quarter Glass
    G09076670
  16. Install in the reverse order of removal.
