Front Passenger Side

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
  4. Disconnect the power window motor connector.
  5. Apply battery positive voltage and connect the ground to power window motor terminals E and F, and then inspect the power window motor operation.

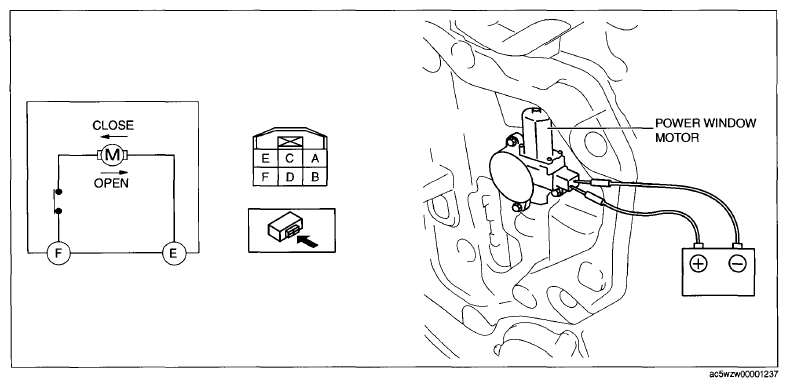

    Fig 1: Power Window Motor Operation Diagram (Front Passenger Side)
    G09076716
    • If the power window motor does not operate as indicated in the table, replace it.
    Operation Terminal
    E F
    Close B+ Ground
    Open Ground B+
