Power Outer Mirror Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
Insert a tape-wrapped flathead screwdriver into the service hole and remove hooks A in the direction of arrow (1).

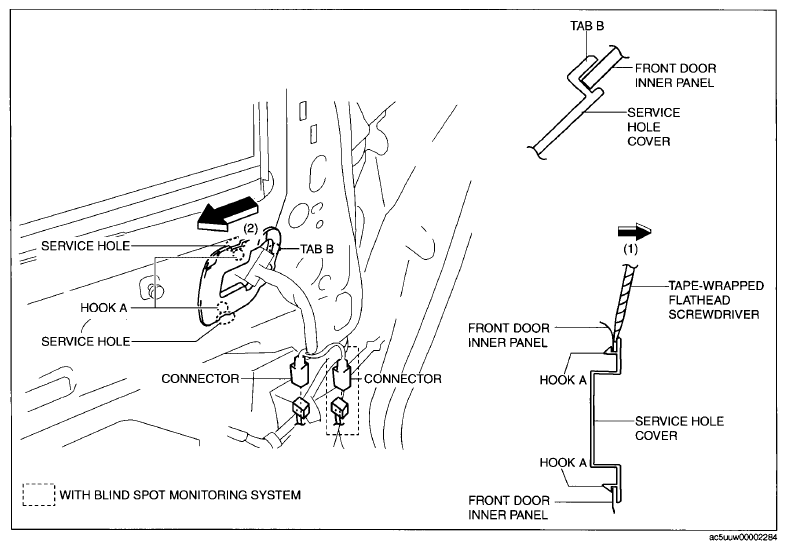

Fig 1: Removing Power Outer Mirror Tab B
Slide the service hole cover in the direction of the arrow (2) shown in the figure and remove tab B.
Disconnect the connector.
Remove nuts C.

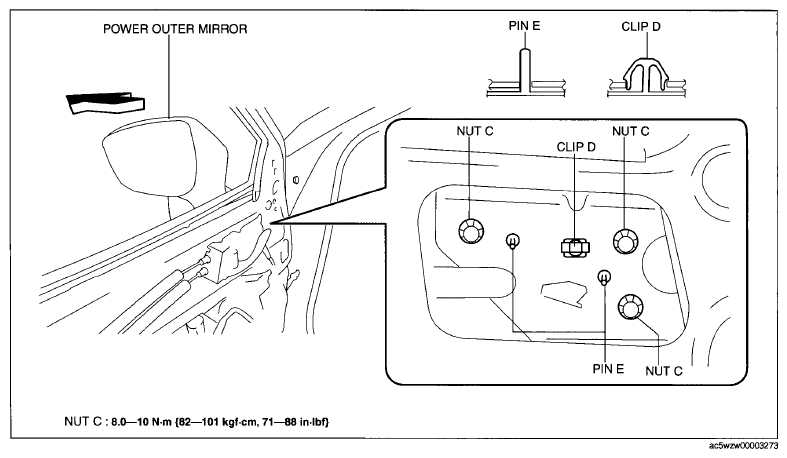

Fig 2: Power Outer Mirror Mounting Components With Torque Specifications
Pull the power outer mirror in the direction of the arrow while remove clips D, pin E.
CAUTION:
- If the clip D of the power outer mirror is detached, the power outer mirror may fall off and be damaged. When detaching clip D of the power outer mirror, hold the power outer mirror by hand during the servicing.
Install in the reverse order of removal.
