Auto-Dimming Mirror Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
Remove the screw B.

Fig 1: Identifying Auto-Dimming Mirror Screw B
Remove the auto-dimming mirror in the direction of arrow (1) shown in the figure.

Fig 2: Remove Auto-Dimming Mirror

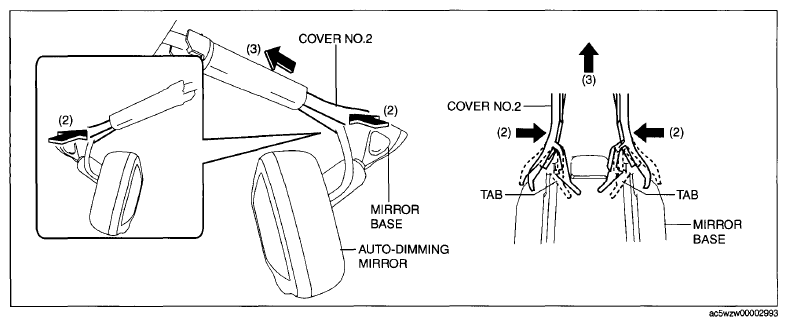

Detach tabs while push the cover No.2 in the direction of the arrow (2) shown in the figure, then remove the cover No.2 in the direction of the arrow (3).

Fig 3: Removing Cover No.2
Disconnect the auto-dimming mirror connector.

Fig 4: Disconnecting Auto-Dimming Mirror Connector
Remove the auto-dimming mirror in the direction of arrow (4) from the mirror base.
Install in the reverse order of removal.

Fig 5: Removing Auto-Dimming Mirror From Mirror Base
