Front Seat Adjuster Unit Removal/Installation: Passenger-side

  1. Switch the ignition off (LOCK).
  2. Disconnect the negative battery cable and wait for 1 min  . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  3. Remove the following parts:
    1. Front seat (See FRONT SEAT REMOVAL/INSTALLATION ).
    2. Front seat side cover (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION ).
    3. Front buckle (See FRONT BUCKLE REMOVAL/INSTALLATION ).
    4. Seat weight sensor control module (See SEAT WEIGHT SENSOR CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] ).
  4. Slide hook A in the order of arrows (1), (2), (3) shown in the figure and set the front seat cushion trim aside.
    Fig 1: Sliding Front Seat Cushion Trim And Hook
    G09076777
  5. Disconnect the seat weight sensor control module connector.
    Fig 2: Disconnecting Seat Weight Sensor Control Module Connector
    G09076834
  6. Using a flathead screwdriver, disconnect the connector in the direction of the arrow (5) while releasing tab B in the direction of the arrow (4) shown in the figure.
  7. Remove bolts A.

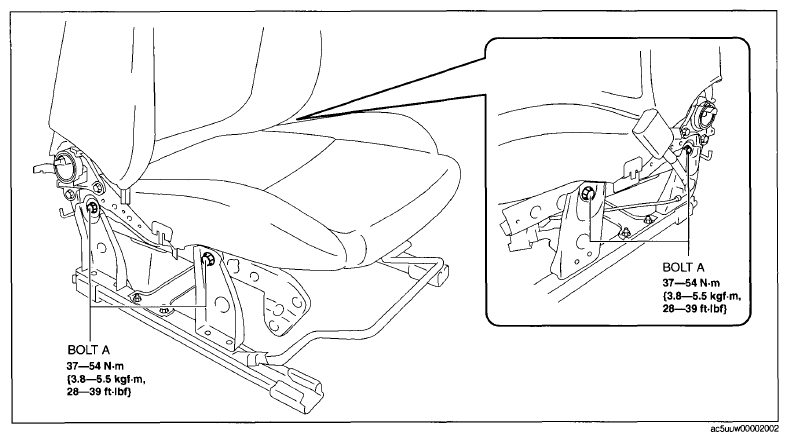

    Fig 3: Front Seat Adjuster Unit And Bolts With Torque Specifications
    G09076835
  8. Install in the reverse order of removal.
