Trunk Covering Removal/Installation

  1. Remove fasteners.

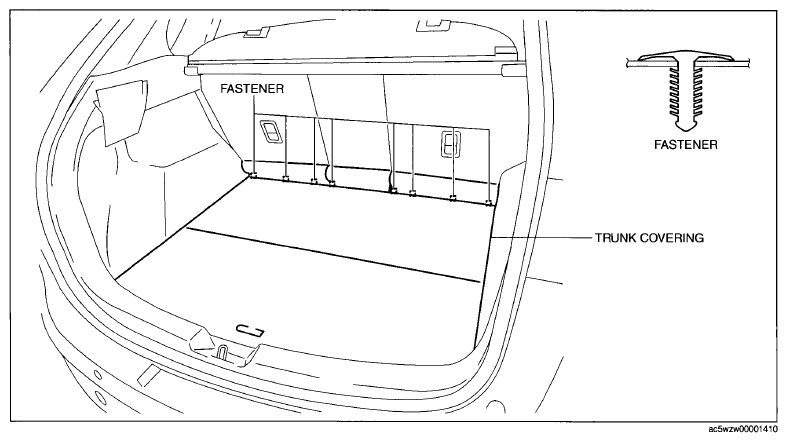

    Fig 1: Identifying Trunk Covering With Fasteners
    G09077214
  2. Remove the trunk covering.
  3. Install in the reverse order of removal.
