SUNVISOR Removal/Installation

  1. Disconnect the negative battery cable, (with vanity mirror illumination) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the screw A.
  3. Rotate the sunvisor in the direction of the arrow.

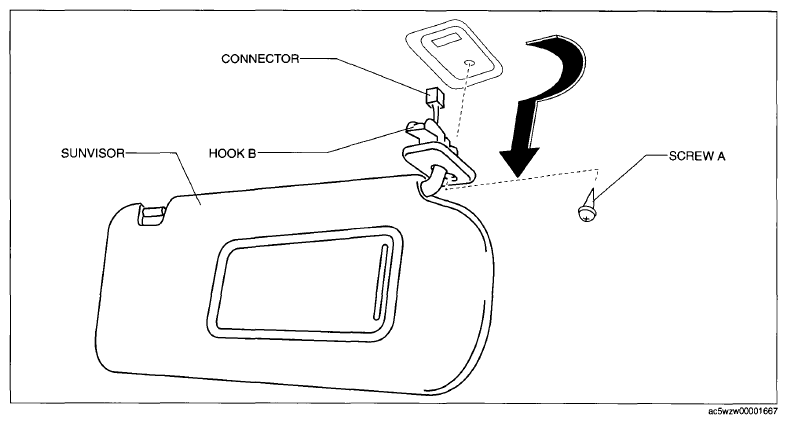

    Fig 1: Rotating Sunvisor
    G09077301
  4. Unhook and remove the sunvisor.
  5. Disconnect the vanity mirror illumination connector, (with vanity mirror illumination)
  6. Press the center adaptor tabs as shown in the figure using two tape-wrapped flathead screwdrivers, and remove the center adaptor.

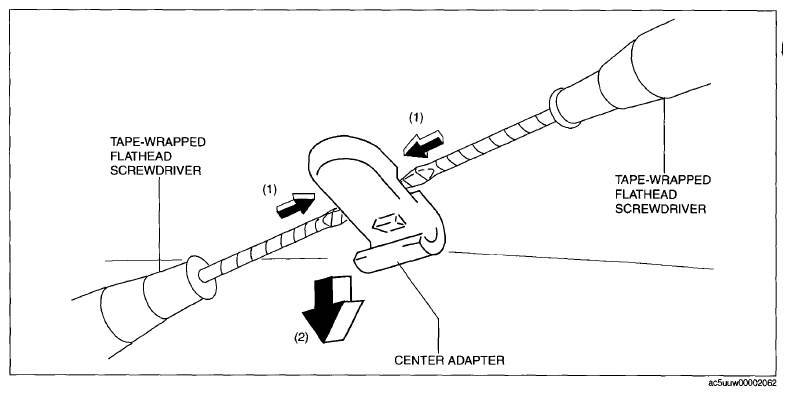

    Fig 2: Removing Center Adaptor
    G09077302
  7. Install in the reverse order of removal.
