Rear Door Trim Disassembly/Assembly: Notes

  1. Disassemble in the order shown in the figure.

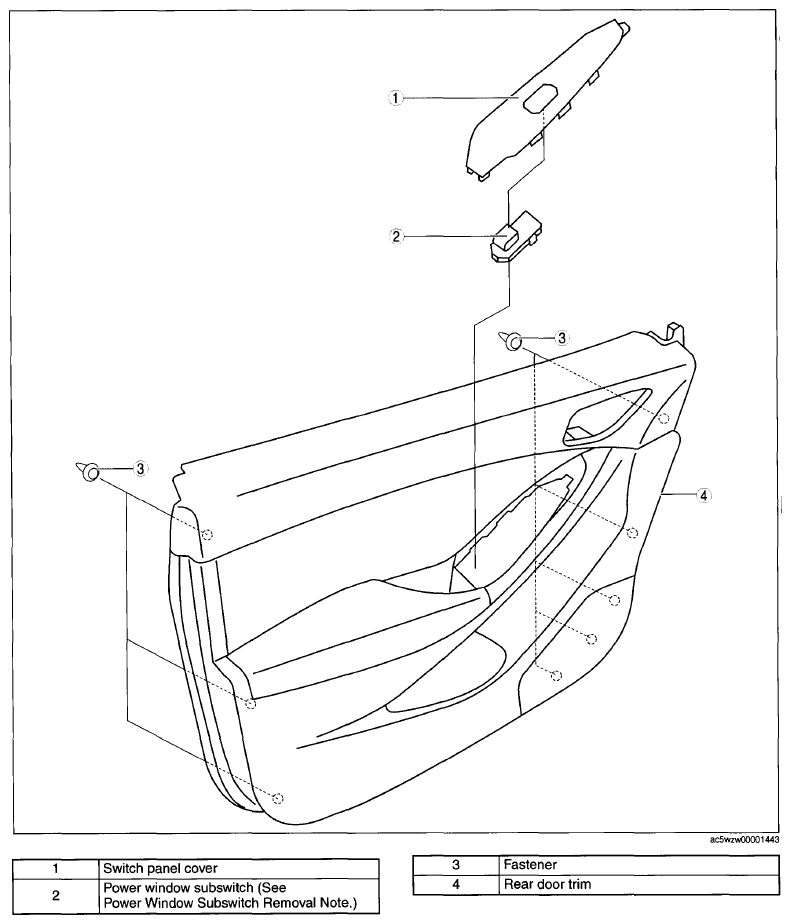

    Fig 1: Disassembled View Of Rear Door Trim
    G09077268
  2. Assemble in the reverse order of disassembly.
