Rear Console Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

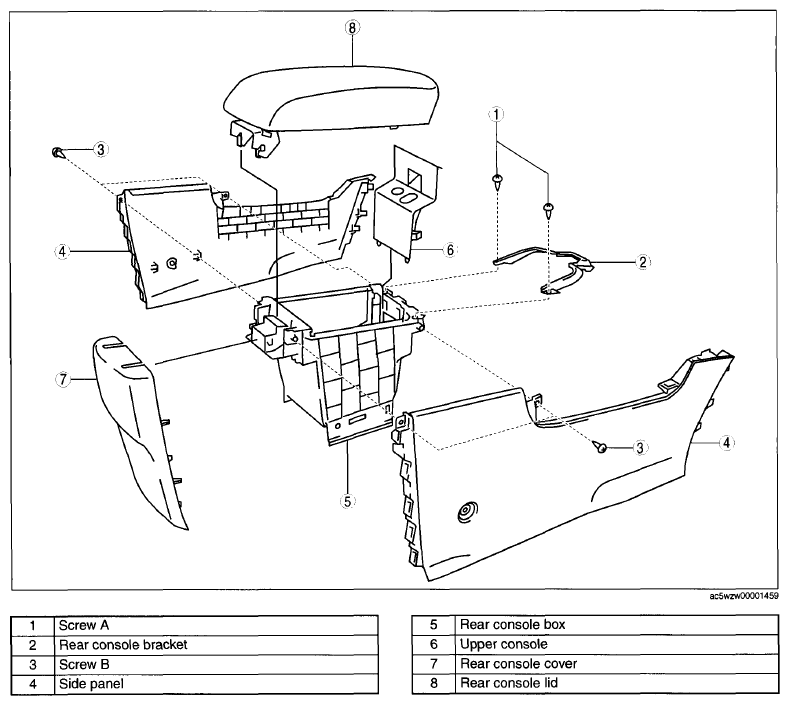

    Fig 1: Disassembled Rear Console
    G09077253
  2. Assemble in the reverse order of disassembly.
