Front Console Box Removal/Installation

NOTE:

• Affix protective tape to the position shown in the figure.

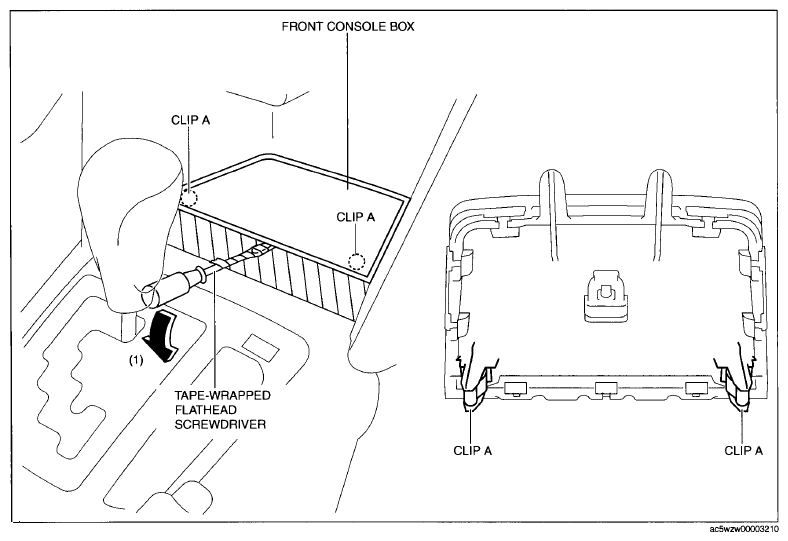

Fig 1: Identifying Front Console Box With Protective Tape And Shift Panel

1. Insert a tape-wrapped flathead screwdriver in the position indicated by the arrow in the figure and detach clips A.

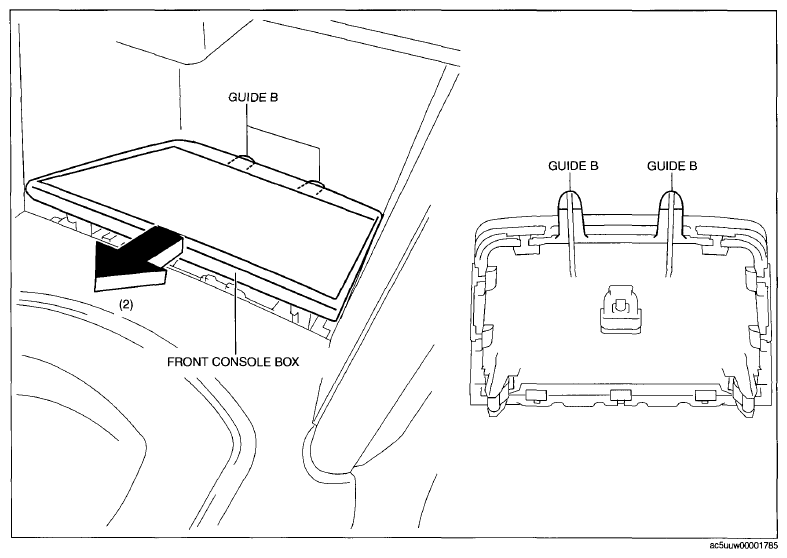

   Fig 2: Removing Front Console Box


2. Pull the front console box in the direction of the arrow (2) and remove it while detaching the guides B.

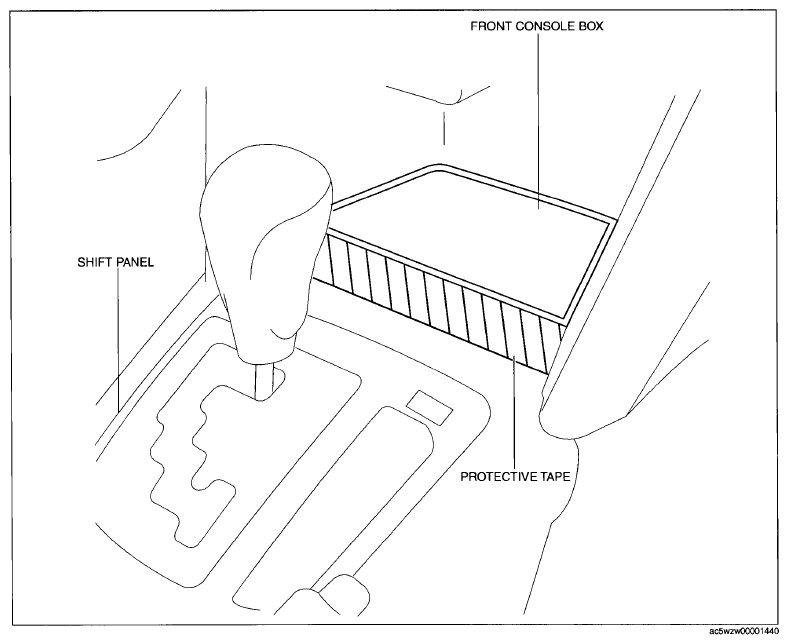

   Fig 3: Pulling Front Console Box


   NOTE:

   • When the occur to gap between the front console box and shift panel, remove the shift panel then assemble to the front console box. after install the front console box and shift panel as single unit.
3. Install in the reverse order of removal.
