Dashboard Installation Note

When installing the dashboard, if the position of the member junction is deviated, the bolts cannot be installed. Before installing the dashboard, align the member junction and bolts to the position shown in the figure.

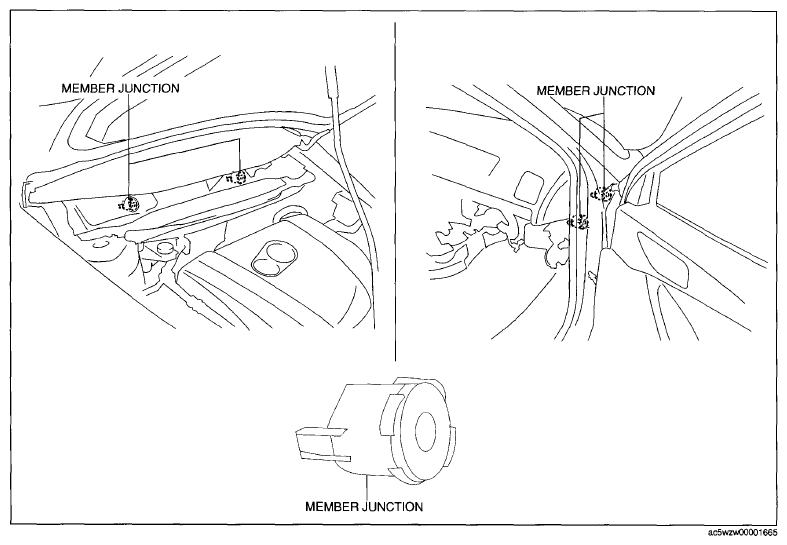

Fig 1: Identifying Member Junctions
