Wiper And Washer Switch Removal/Installation

  1. Switch the ignition ON (engine off or on).
  2. Open the driver's door.
  3. Switch the ignition OFF.
  4. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0] ).
  5. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION ).
  6. Rotate the steering wheel in the direction of the arrow shown in the figure to the angle where the service hole is visible.

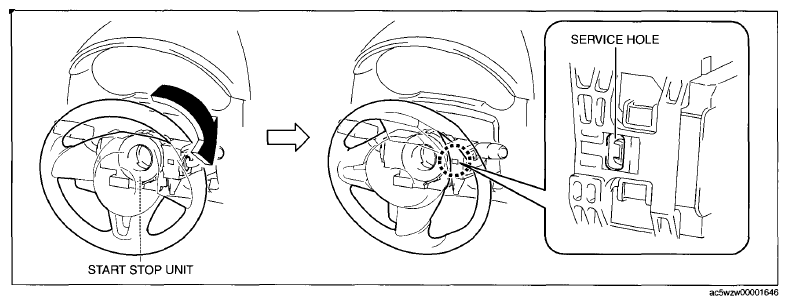

    Fig 1: Rotating Steering Wheel
    G09077613
  7. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.
  8. While pressing the wiper and washer switch tab in the direction of the arrow (1) shown in the figure using a flathead screwdriver, pull out the wiper and washer switch in the direction of the arrow (2) shown in the figure to detach the wiper and washer switch tab and the start stop unit.

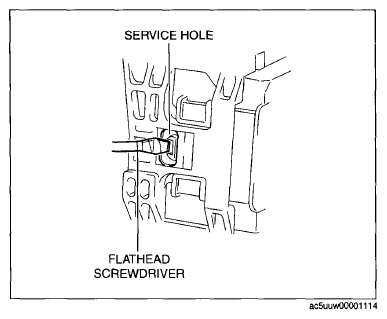

    Fig 2: Inserting Flathead Screwdriver Into Service Hole
    G09077614

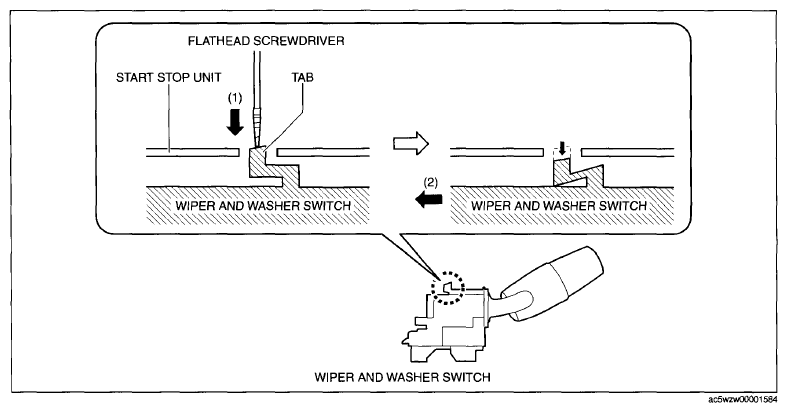

    Fig 3: Removing Wiper And Washer Switch Using Screwdriver
    G09077615
  9. Remove the wiper and washer switch from the start stop unit.
  10. Install in the reverse order of removal.

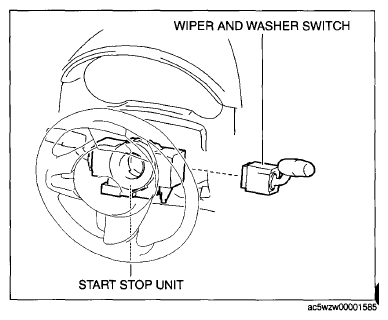

    Fig 4: Identifying Wiper And Washer Switch And Start Stop Unit
    G09077616
