Windshield Washer Hose Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION ).
  3. Remove the mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION ).
  4. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION ).
  5. Disconnect the windshield washer hose A from the washer motor.
  6. Remove the windshield washer hose A from the washer tank hook.
  7. Remove the windshield washer hose A from clips A.
  8. Disconnect the windshield washer hose A from the joint pipe A and remove it.

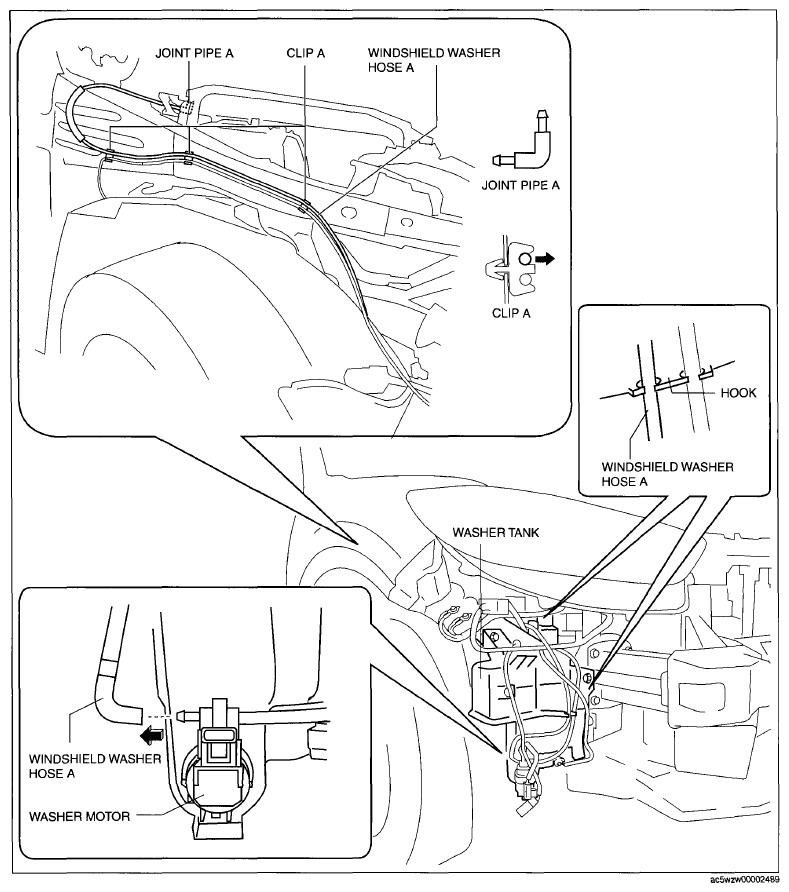

    Fig 1: Disconnecting Windshield Washer Hose A From Washer Motor
    G09077585
  9. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION ).
  10. Disconnect the windshield washer hose B from the joint pipe A.
  11. Disconnect the windshield washer hose B from the joint pipe B and remove it.
  12. Disconnect the windshield washer hose C from the windshield washer nozzle A.
  13. Disconnect the windshield washer hose C from the joint pipe B and remove it.
  14. Disconnect the windshield washer hose D from the joint pipe B.
  15. Disconnect the windshield washer hose D from the joint pipe C and remove it.
  16. Disconnect the windshield washer hose E from the windshield washer nozzle B.
  17. Disconnect the windshield washer hose E from the joint pipe C and remove it.

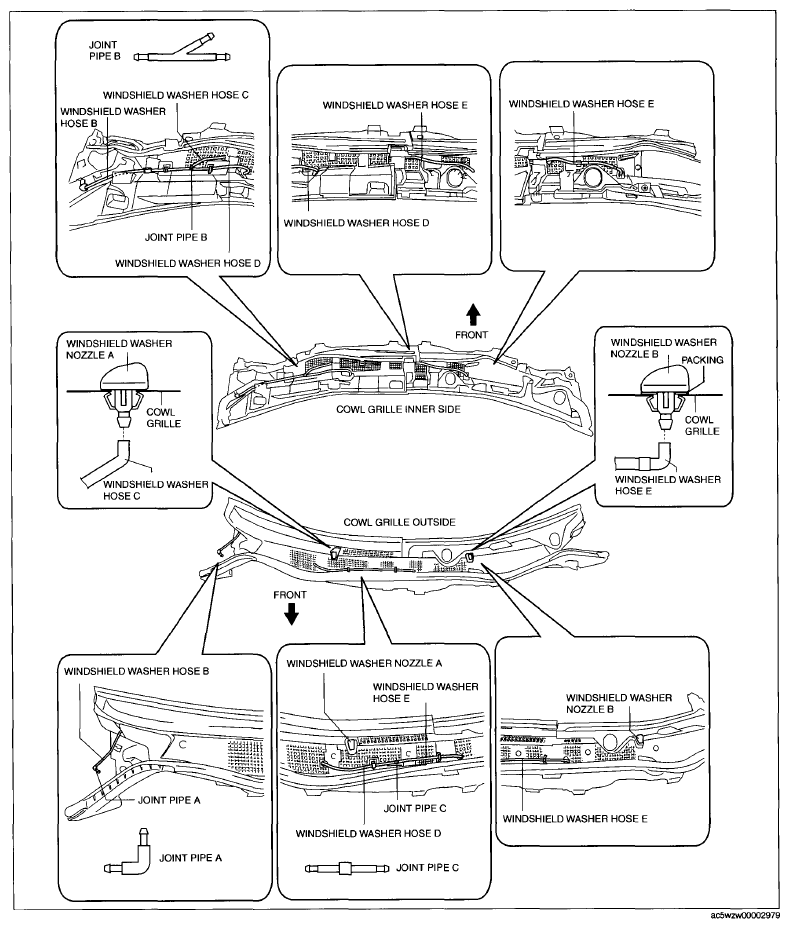

    Fig 2: Removing Cowl Grille
    G09077586
  18. Install in the reverse order of removal.
