Troubleshooting Procedure

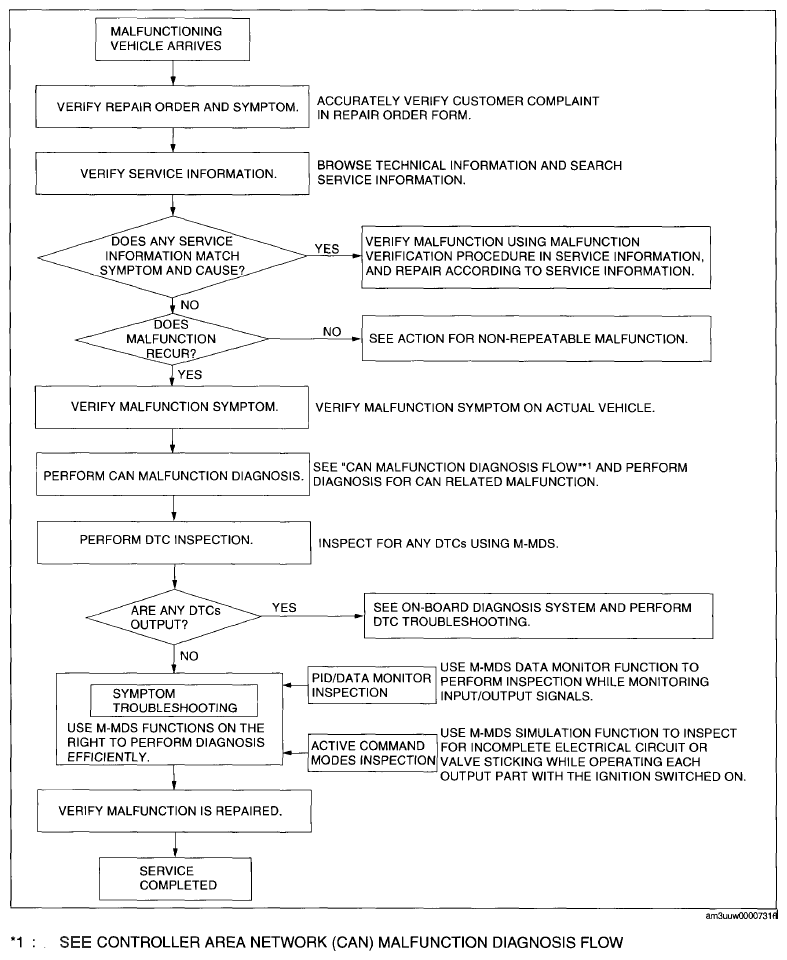

Fig 1: Malfunction Troubleshooting Chart

G09074822

*1: CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
