Pattern 1

Terminal:
- Brake fluid level signal: 2Q (+) <==> ground (-)
- Washer level signal: 2S (+) <==> ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range

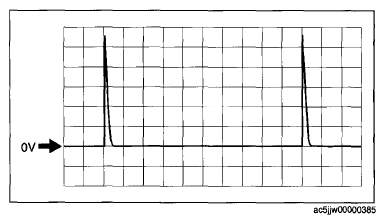

Fig 1: Brake And Washer Fluid Level Signal Voltage Waveform
