Seat Weight Sensor Control Module Connector End View

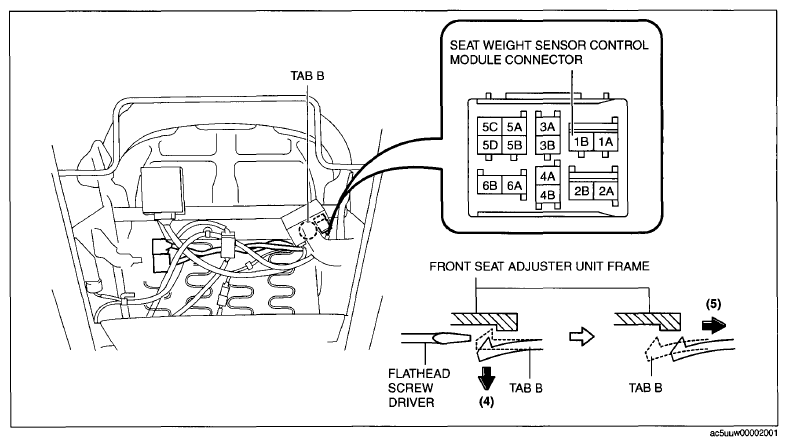

Fig 1: Seat Weight Sensor Control Module Connector End View
G09076834Courtesy of MAZDA MOTORS CORP.


Fig 1: Seat Weight Sensor Control Module Connector End View
G09076001Courtesy of MAZDA MOTORS CORP.
