BSM Control Module Connector End View

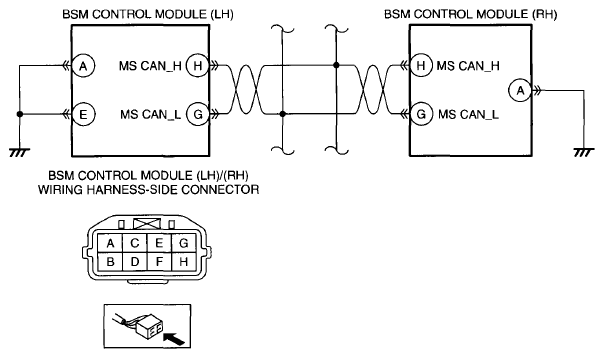

Fig 1: BSM Control Module Connector End View

G09076434

Courtesy of MAZDA MOTORS CORP.
