Rear Buckle Installation Note

  1. After installing the rear center seat belt, place the release switch of the rear buckle so that it faces the vehicle's inner-side as shown in the figure.

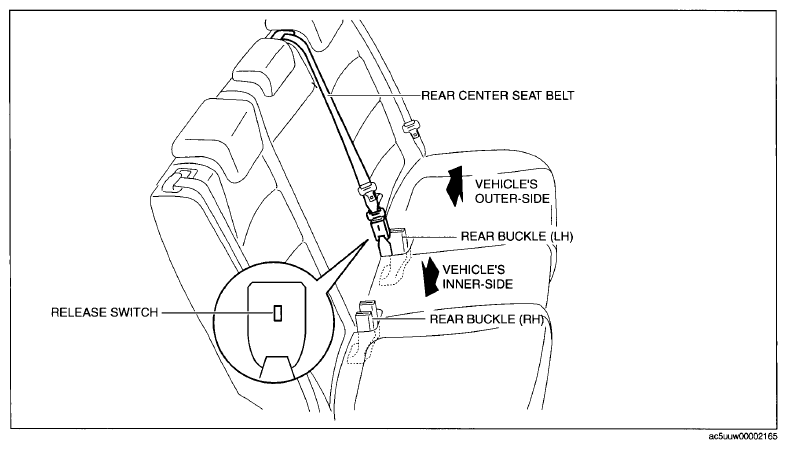

    Fig 1: Placing Rear Buckle Release Switch
    G09076267
