Adjuster Anchor Removal/Installation

WARNING:
  • The side air bag sensor is attached to the lower part of the B-pillar. When working around the B-pillar, disconnect the negative battery cable or work carefully, avoiding excessive impact to the lower part of the B-pillar (with side air bag sensor No.1).
  1. Switch the ignition off.
  2. Disconnect the negative battery cable and wait for 1 min or more.  (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  3. Set the adjuster to the lowest position.
  4. Remove the following parts:
    1. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION ).
    3. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION ).
    4. Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION ).
    5. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION ).
  5. Remove bolt A.
    Fig 1: Adjuster Anchor, Bolt A And B With Torque Specifications
    G09076251
  6. Remove bolt B.
  7. Remove the tab.
  8. Remove the adjuster anchor.
  9. Install in the reverse order of removal.

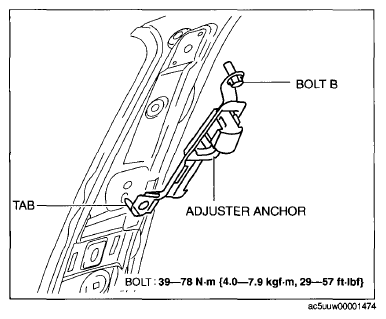

    Fig 2: Adjuster Anchor, Tab And Bolt B With Torque Specifications
