How To Use This Manual: Symbols

There are nine symbols indicating oil, grease, fluids, sealant, and the use of SST or equivalent. These symbols show application points or use of these materials during service.

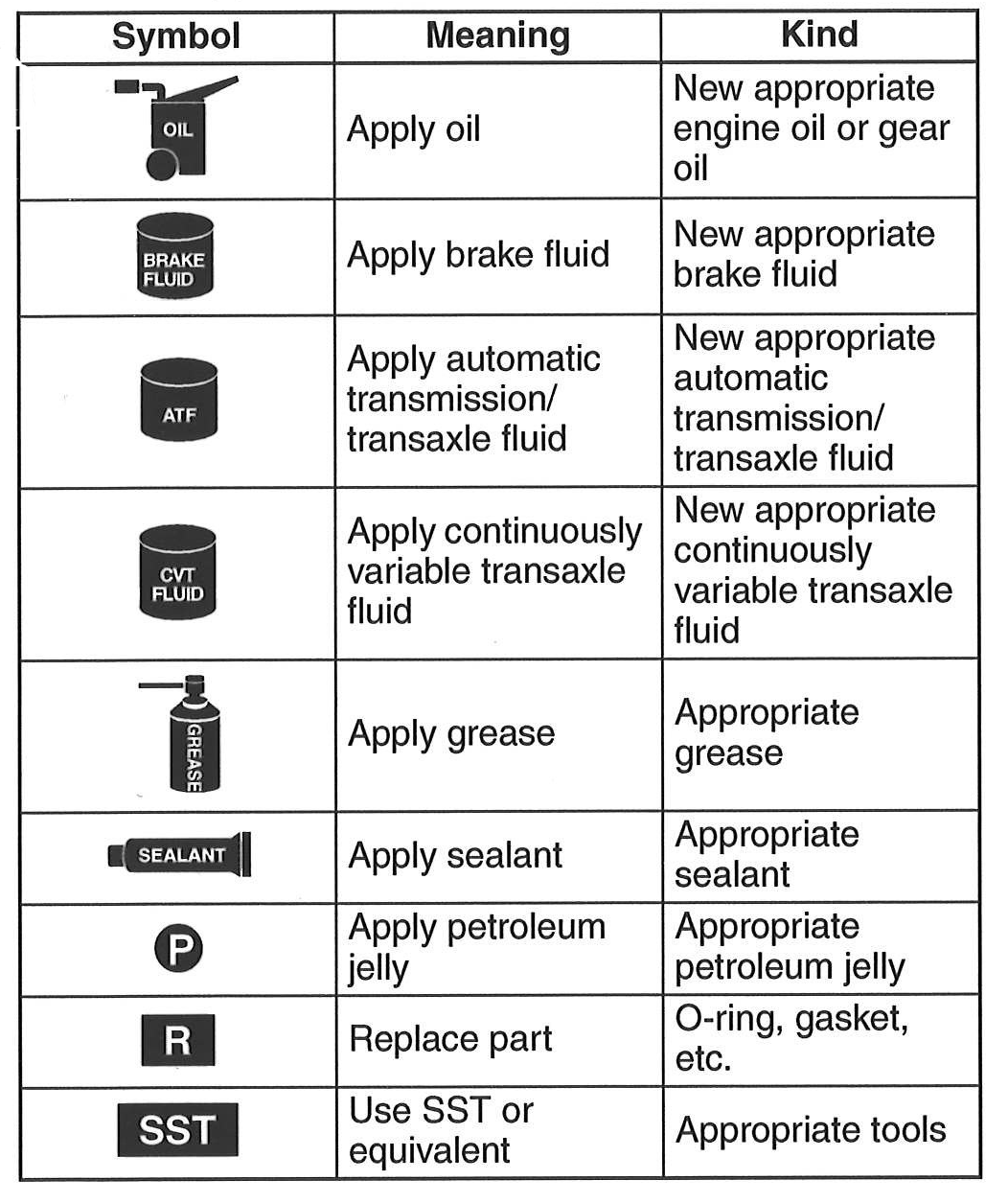

Fig 1: Service Symbol Reference Chart

Courtesy of MAZDA MOTORS CORP.
