Ventilation Hose Installation Note

  1. Install the ventilation hose as shown in the figure.

    Cylinder head cover side

    Fig 1: Identifying Ventilation Hose, Cylinder Head Cover And Marks (Cylinder Head Cover Side)
    G09074408

    Air hose side

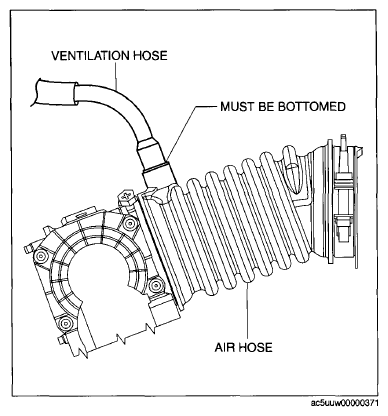

    Fig 2: Identifying Ventilation Hose And Air Hose (Air Hose Side)
    G09074409
