Vacuum Hose Installation Note
Install the vacuum hose as shown in the figure.

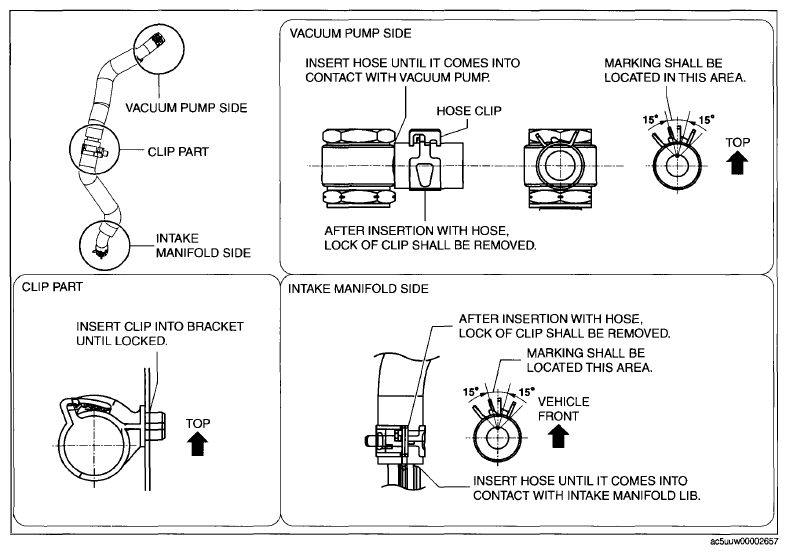

Fig 1: Identifying Vacuum Hose Installation Position
