Fresh-air Duct Installation Note
Install the fresh-air duct as shown in the figure.

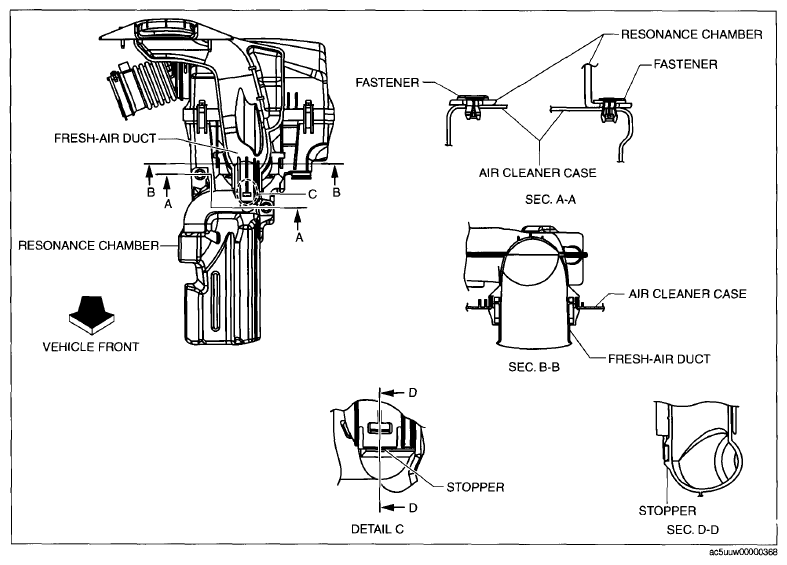

Fig 1: Installing Fresh-Air Duct
