Accelerator Pedal Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

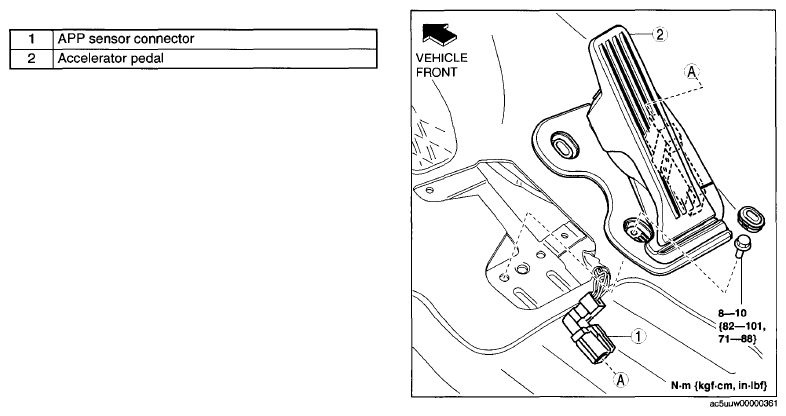

    Fig 1: Accelerator Pedal And APP Sensor Connector With Torque Specifications
    G09074413
