Engine Removal/Installation: 2WD

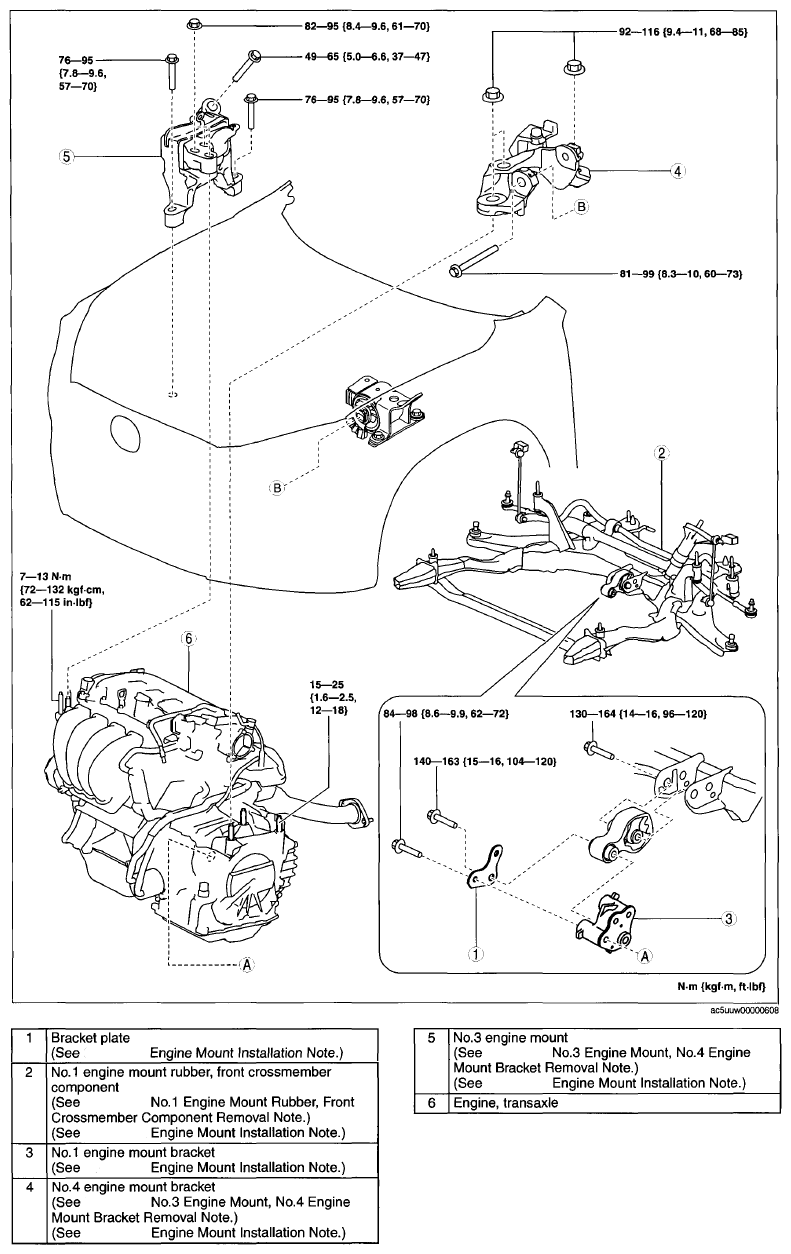

Fig 1: Bracket Plate, Engine Mount Rubbers, Brackets, Nuts And Bolt With Torque Specifications (2WD)

G09074305
