No.3 Engine Mount: Notes

CAUTION:
  • Slots have been adopted for the No.3 engine mount installation holes. If the No.3 engine mount is deviated from the original position when installing the No.3 engine mount, engine noise or vibration could increase. Before removing the No.3 engine mount, place alignment marks on the No.3 engine mount and body so that they can be assembled to the same positions as before removal.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

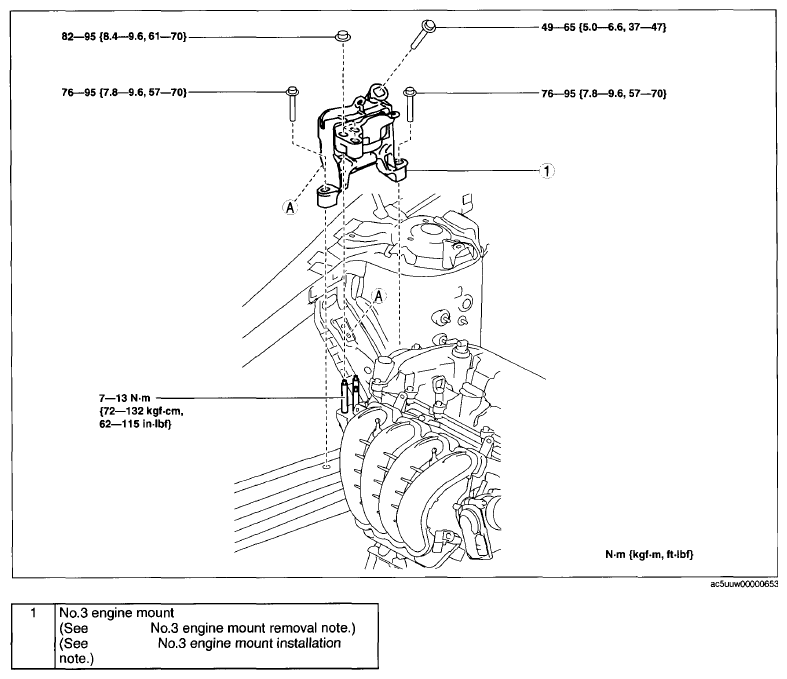

    Fig 1: No.3 Engine Mount And Bolts With Torque Specifications
    G09074282
