Engine Disassembly/Assembly: Notes

CAUTION:
  • When the transaxle is installed, do not suspend the engine. Otherwise, the SST installation area of the cylinder head may be damaged due to excess weight. Only suspend the engine after separating the engine and transaxle.
  • Applying excessive force (force of 100 N {10.2 kgf, 22.5 lbf} or more) to the electric variable valve timing motor/driver may cause a malfunction. When servicing, be careful not to apply excessive force to the electric variable valve timing motor/driver using other parts or tools.
  1. To enable to install the SST  , disconnect the clip shown in the figure and set the wiring harness aside.
  2. Install the SST  using part number 99794 1025  or an M10 x 1.25  , length 25 mm {0.98 in}  bolt as shown in the figure.
    Fig 1: Identifying Intake Manifold And Clip
    G09074324

    Engine front side

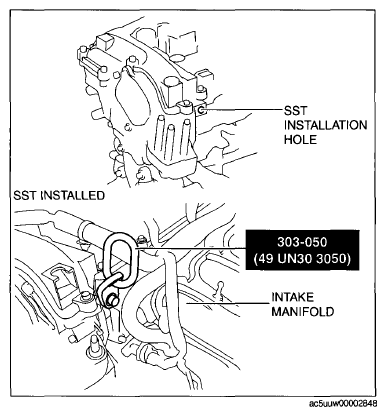

    Fig 2: Installing SST Into Intake Manifold Installation Hole
    G09074325

    Engine rear side

    Tightening torque 38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}

    Fig 3: Installing SST (303-050) Into Vacuum Pump
    G09074326
  3. Engage the hook for the SST (49 L017 5A0)  to the SST (49 UN30 3050)  .
    Fig 4: Engaging Hook For SST (49 L017 5A0) To SST (49 UN30 3050)
    G09074327
  4. To ensure the safety of the work (control engine and transaxle sway), set a hoist as shown in the figure.
    CAUTION:
    • Do not lift up the engine.

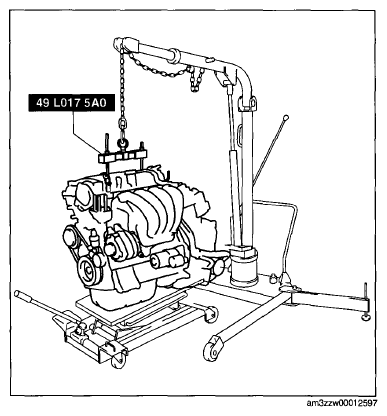

    Fig 5: Hoisting Engine And Transaxle
    G09074328
  5. Remove the insulator shown in the figure.
  6. Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION ).
  7. Remove the exhaust manifold bracket in the order shown in the figure.

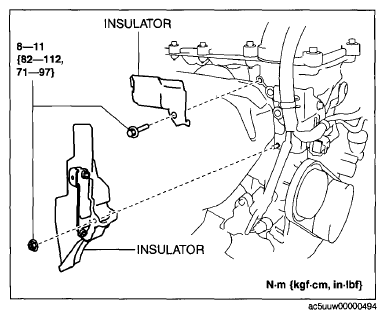

    Fig 6: Insulator, Mounting Nut And Bolt With Torque Specification
    G09074329

    MTX

    Fig 7: Identifying Exhaust Manifold Bracket To Cylinder Block Mounting Bolts Tightening Sequence
    G09074330

    ATX

    NOTE:
    • Install in the reverse order of removal when installing the bracket.

    Tightening torque 38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}

  8. Remove the bracket No.1 (drive shaft bracket). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION ).
  9. Remove the transfer bracket and transfer. (AWD) (See TRANSFER REMOVAL/INSTALLATION ).
  10. Remove the starter. (See STARTER REMOVAL/INSTALLATION ).
    Fig 8: Identifying Transaxle To Cylinder Block Bracket Mounting Bolts Tightening Sequence
    G09074331
  11. Fix the drive plate using the crankshaft pulley lock bolt. (ATX)
  12. Remove the torque converter installation nut from the starter installation hole. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6A-EL] (2WD) ). (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL] (AWD) ).
  13. Disconnect the engine and transaxle, and lower only the engine from the engine lifter. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION (MTX)). (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6A-EL] (2WD) ). (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL] (AWD) ).
  14. Remove the generator. (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0] ).
  15. Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ).
  16. Remove the fuel injectors. (See FUEL INJECTOR REMOVAL/INSTALLATION ).
  17. Remove the camshaft position (CMP) sensor. (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION ).
  18. Remove the vacuum pump. (See VACUUM PUMP REMOVAL/INSTALLATION ).
  19. Remove the high pressure fuel pump and rear housing. (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION ).
  20. Remove the oil filter. (See OIL FILTER REPLACEMENT ).
  21. Remove the oil cooler (if equipped). (See OIL COOLER REMOVAL/INSTALLATION ).
  22. Remove the engine oil solenoid valve. (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION ).
  23. Remove the crankshaft position (CKP) sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION ).
  24. Remove the ignition coil/ion sensors. (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION ).
  25. Remove the wiring harness bracket shown in the figure.
  26. Remove the emission harness.
  27. Remove the water pump drive belt. (See DRIVE BELT REMOVAL/INSTALLATION ).
  28. Remove the clutch cover and clutch disc. (MTX) (See CLUTCH UNIT REMOVAL/INSTALLATION ).
  29. Remove in the order indicated in the table.
    Fig 9: Electric Variable Valve Timing Motor/Driver, Wiring Harness Bracket And Bolts With Torque Specifications
    G09074332
  30. Assemble in the reverse order of disassembly.

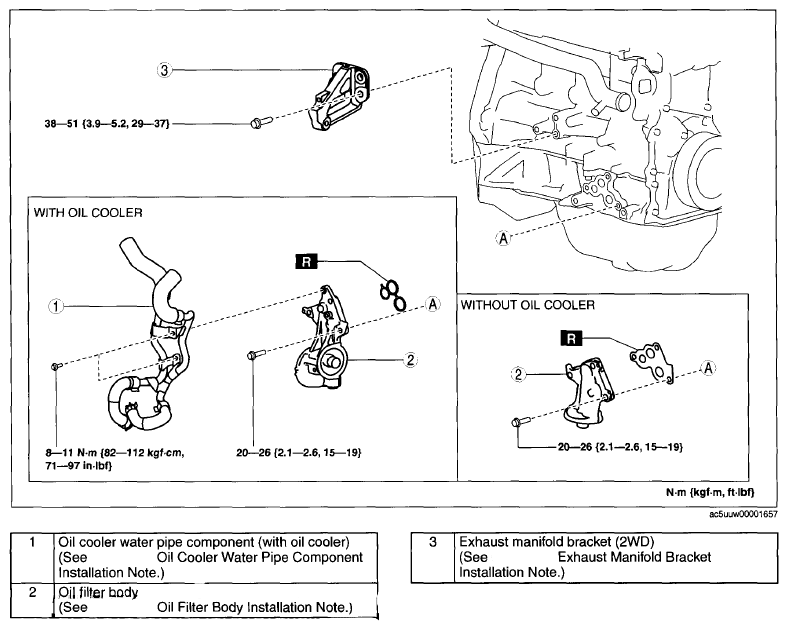

    Fig 10: Oil Filter Body, Exhaust Manifold Bracket And Oil Cooler Water Pipe Components With Torque Specifications
    G09074333
