| 1 |
- Switch the ignition ON (engine off or on).
- Fully open the driver's side power window.

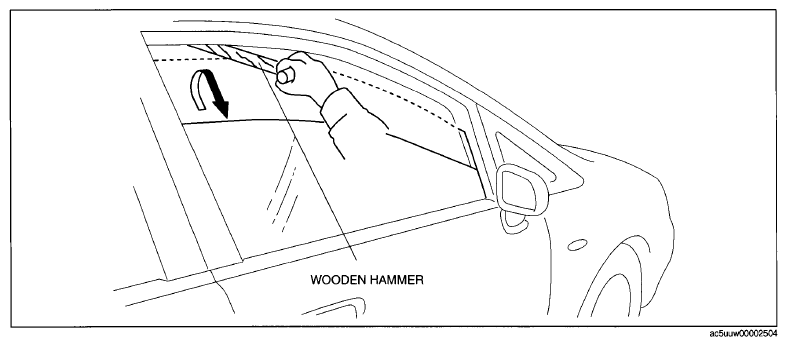

- Insert a wooden hammer (thickness: 10 mm {0.39 in} or more)
as shown below. Then, close the power window.
- Verify that the power window opens 200 mm {7.87 in}
after contacting the hammer and the operation stops.
- Does auto reverse pinch protection function operate properly?
|
Yes |
Auto reverse pinch protection function is normal. |
| No |
Go to the next step. |
| 2 |
- Does the power window open before contacting the hammer?
|
Yes |
Go to
NO.6 DOOR GLASS REVERSES EVEN THOUGH THE GLASS DOES NOT ENCOUNTER A FOREIGN OBJECT WHILE IT IS MOVING UP IN AUTOMATIC MODE [POWER WINDOW SYSTEM] . |
| No |
- Initialize the power window main switch.
NOTE:
- Before initializing the power window main switch, cut off the power supply to the power window main switch for 60 s.
Then, reconnect it again after 60 s:
- Disconnect the negative battery cable.
- Disconnect the power window main switch connector.
- Remove the fuse for the power window system.
|
