Remote Handle Lever Installation Note: Notes

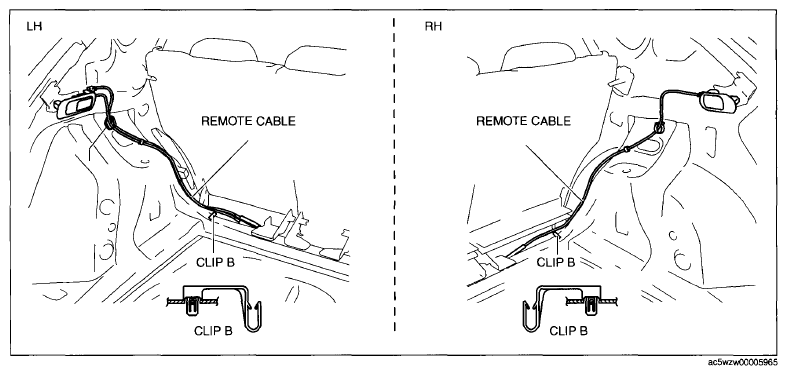

Clip B
CAUTION:
- Do not use clips B because they were used when the vehicle was manufactured. The remote cables are routed and installed near clips B, however, if the remote cables are installed to clips B, the remote cables may contact the vehicle body while a remote handle lever is operated or the vehicle is driven causing abnormal noise. Therefore, route the remote cables avoiding clips B.
