TNS Relay Connector End View
TNS Relay Connector End View

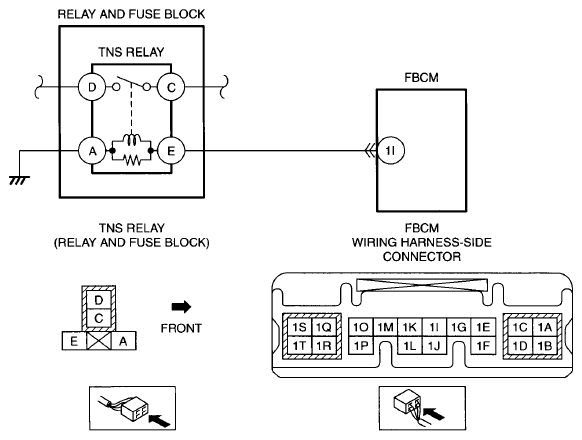

Fig 1: TNS Relay Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
