Passenger-Side Side Air Bag Module Connector End View

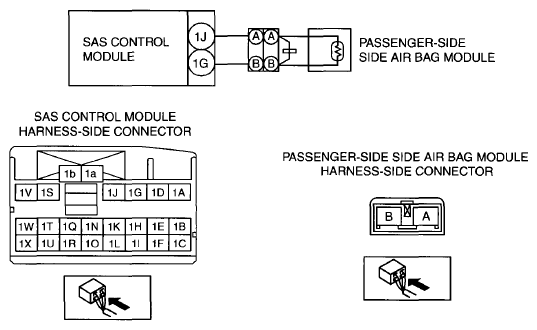

Fig 1: Passenger-Side Side Air Bag Module Connector End View
G09075945Courtesy of MAZDA MOTORS CORP.
