Haedlight Hi Relay Connector End View

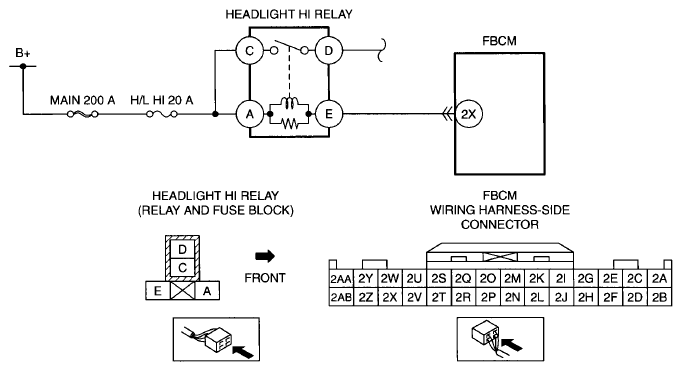

Fig 1: Haedlight Hi Relay Connector End View

G09076449

Courtesy of MAZDA MOTORS CORP.
