Front Fog Light Relay Connector End View

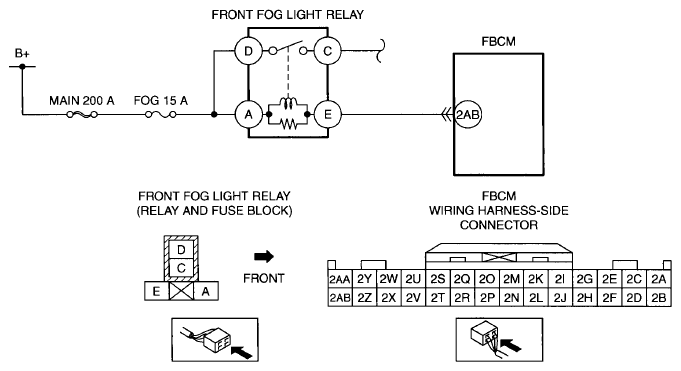

Fig 1: Front Fog Light Relay Connector End View

G09076457

Courtesy of MAZDA MOTORS CORP.
