OEM Connector End Views
>>
Connector End Views
>>
Front Conbination Light (LH) Connector End View
Front Conbination Light (LH) Connector End View

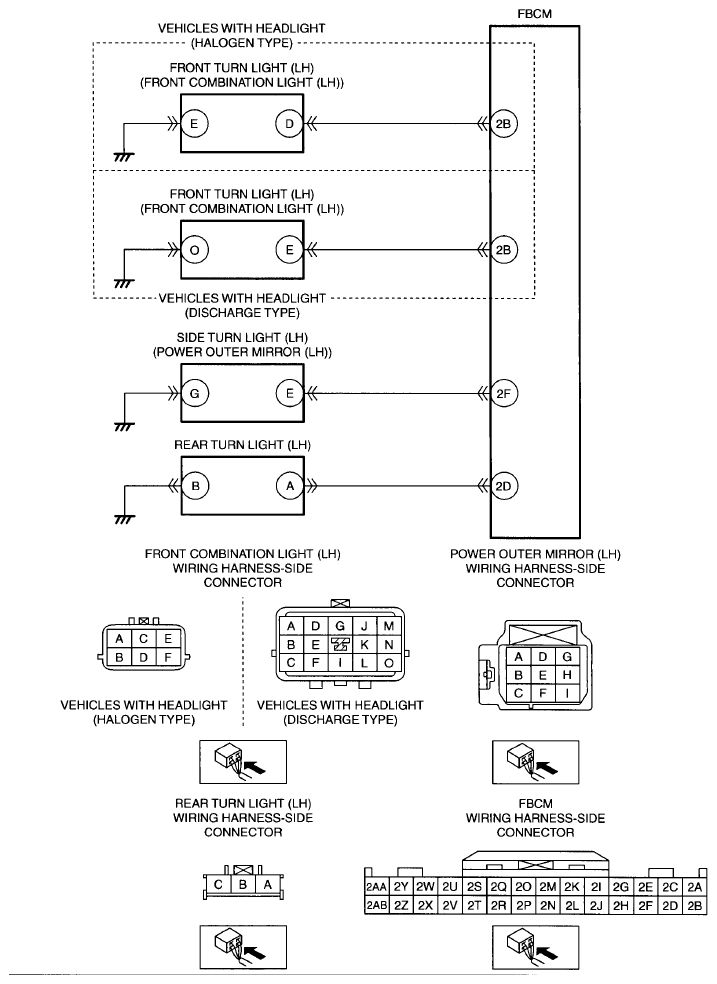

Fig 1: Front Conbination Light (LH) Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
