Door Lock System (With Advanced Keyless Entry System) Connector End View (0914-2e)

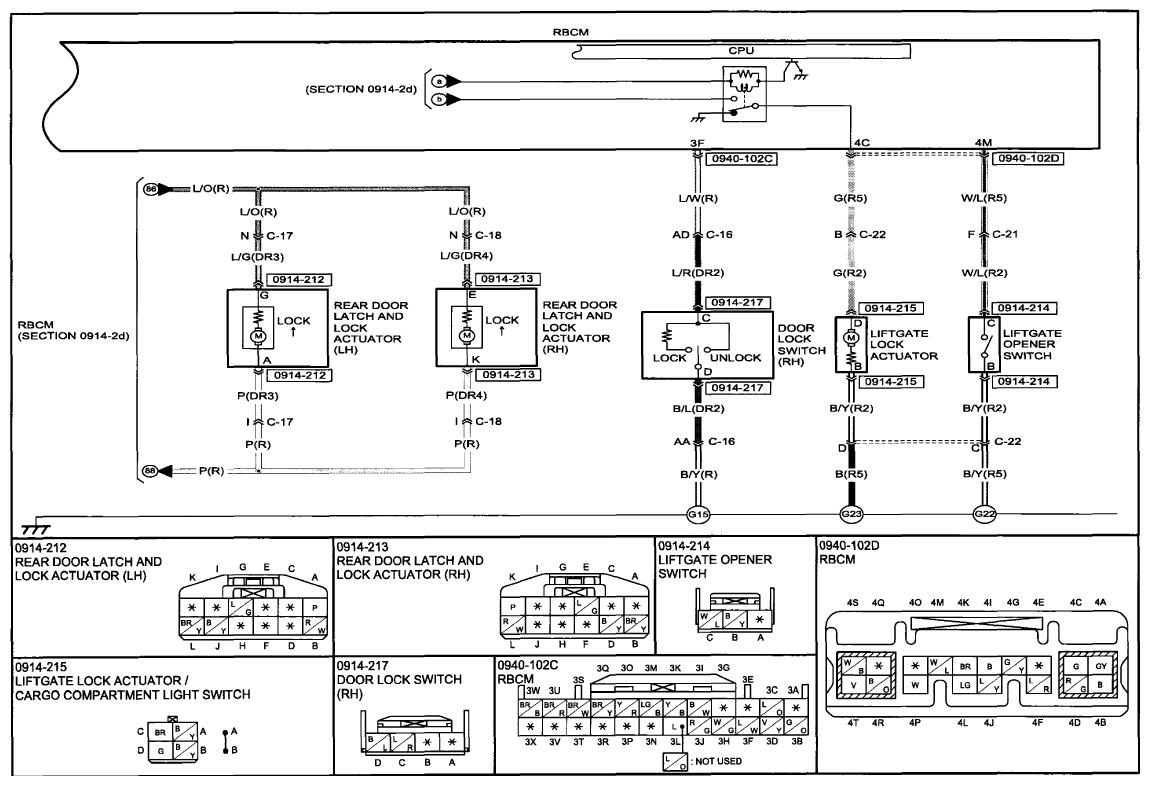

Fig 1: Door Lock System (With Advanced Keyless Entry System) Connector End View (0914-2e)
G09120293Courtesy of MAZDA MOTORS CORP.
