Audio System Connector End View (0920-2b)

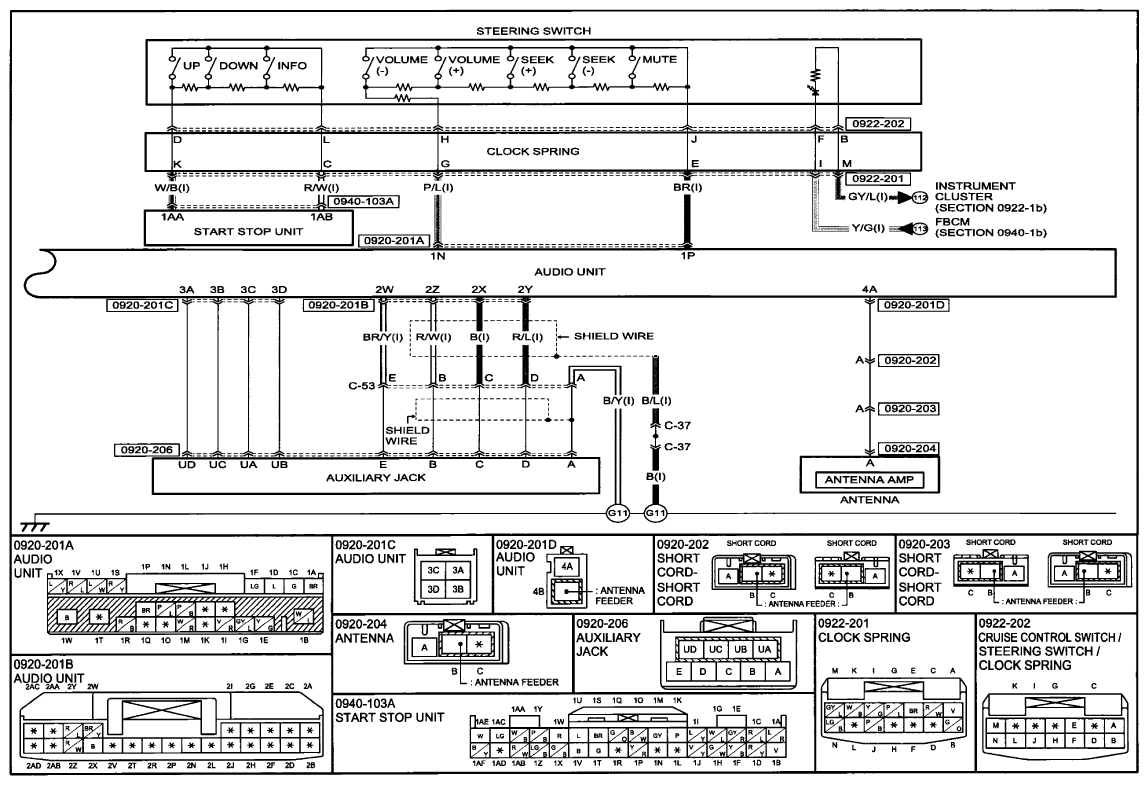

Fig 1: Audio System Connector End View (0920-2b)

G09120331

Courtesy of MAZDA MOTORS CORP.
