Audio System Connector End View (0920-2a)

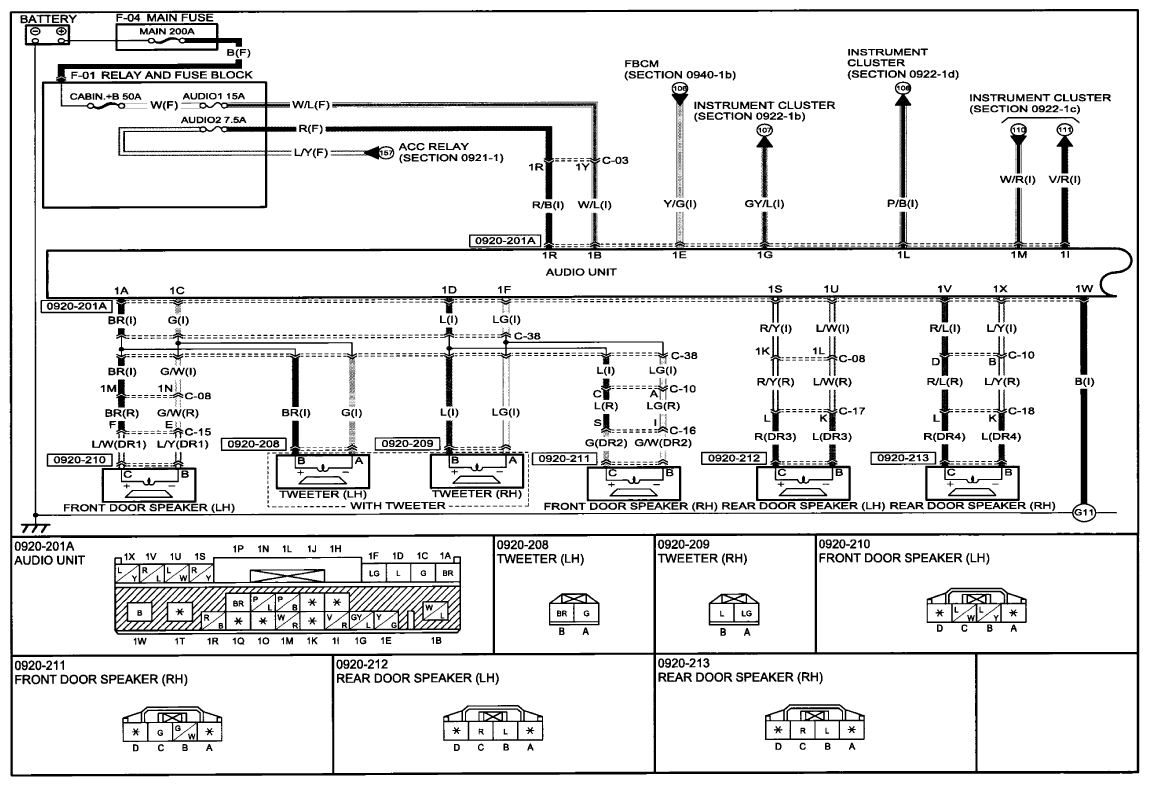

Fig 1: Audio System Connector End View (0920-2a)

G09120329

Courtesy of MAZDA MOTORS CORP.
