Preparation prior to inspection
- Remove the ABS wheel-speed sensor. (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION ).
- Remove the wheel hub and steering knuckle as a single unit. (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION ).

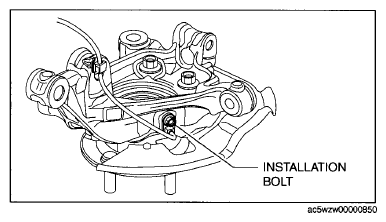

- Install the ABS wheel-speed sensor to the removed wheel hub, steering knuckle component, and tighten to the specified torque.
Tightening torque
8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
