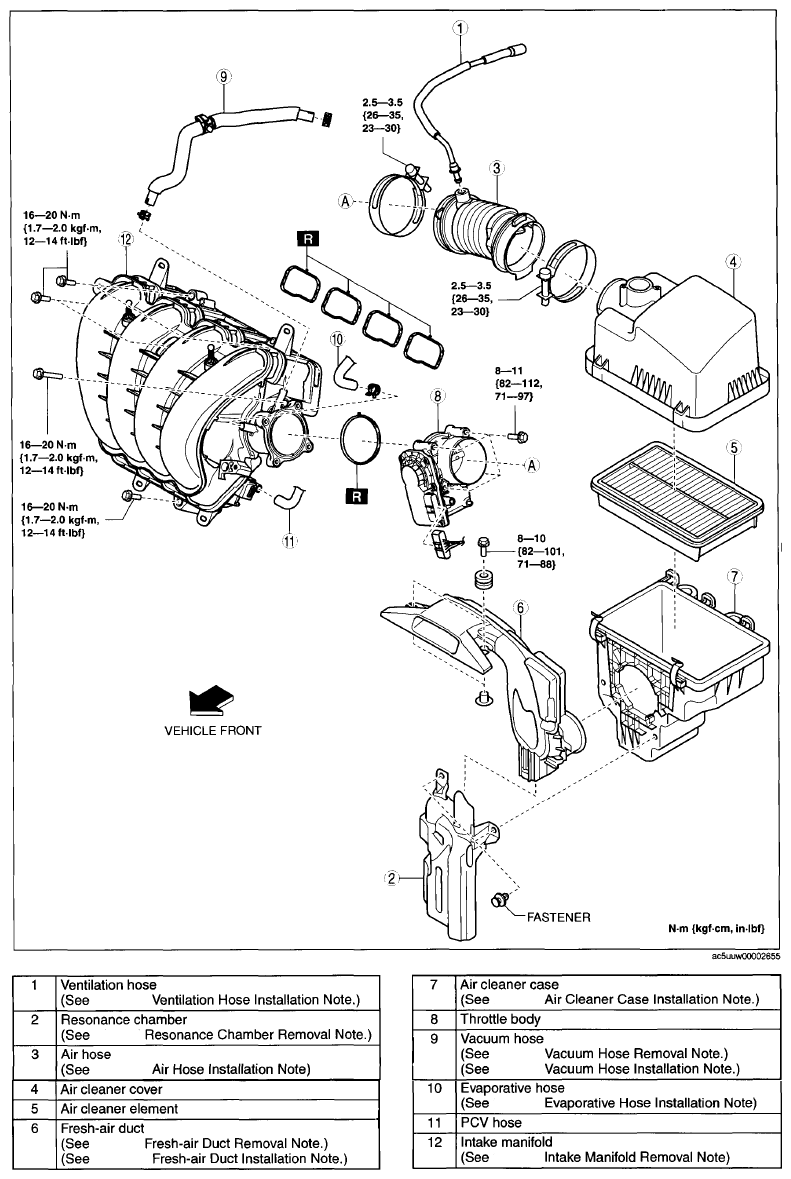

Intake-Air System Removal/Installation: Notes
WARNING:
- A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
